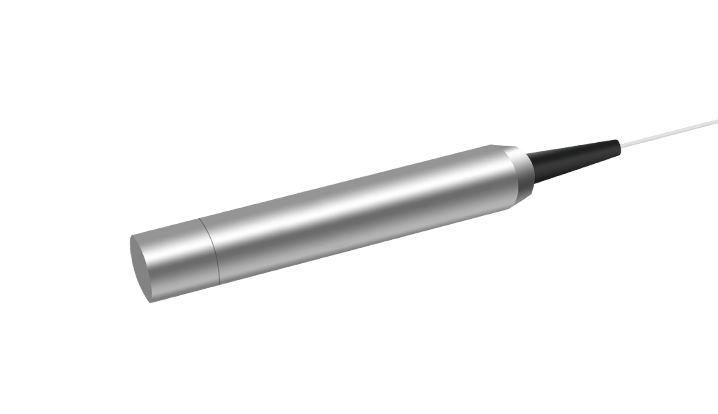

1064nm /1310nm/1550nm Polarization Maintaining Fiber Faraday Mirror with PM Panda Pigtail

Product ID: 6851

Add to wishlist
Compare

$100

1064nm /1310nm/1550nm Polarization Maintaining Fiber Faraday Mirror with PM Panda Pigtail

Features
Low Insertion Loss

High PER、High Reliability
Application
Fiber Optical Instrument

Fiber Sensor， Coherent Detecting



Note:
$100 is a deposit, not the final price of the product. If you are interested in the product, please contact us for the price.

Specification:

Parameter Value
Operating wavelength(nm) 1310, 1550, 1064
Bandwidth(nm) ±15 ±5
Insertion Loss (dB) ≤0.6 (Typ.0.4) ≤3.0 (Typ 2.6)
Faraday Rotation Angle (Single Pass) (Degree) 45 or 90
Rotation Angle Tolerance at 23℃(Degree) ≤±1 ≤±3
Extinction Ratio (dB) ≥20
Optical Power (mW) ≤500 ≤150
Fiber Type PM 1310 or 1550 Panda Fiber PM980 Panda Fiber
Operating Temperature(℃) -5 ~ +70 -5 ~ +50
Storage temperature (℃) -40 ~ +85
Dimension(φ×L) (mm) Ф5.5×35 (P1)；Ф4.5×25 (P3)

*Above specifications are for devices without the connectors.
*For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower, and ER will be 2dB lower.
*The PM fiber and the connector key are aligned to the slow axis.

Package Dimension

Ordering Information

PMFM Wavelength 00 Faraday Rotation Angle Package Pigtail Type Length Connector
1064=1064nm
1310=1310nm
1550=1550nm		 1=45 Degree
2=90 Degree 		1=5.5*35mm
3=4.5*25mm		 1=250um bare fiber
2=900um loose tube
3=3mm loose tube
4=2mm loose tube		 H=0.5m
8=0.8m
1=1.0m
5=1.5m
2=2.0m
3=3.0m
4=4.0m
A=2.5m		 0=None
1=FC/UPC
2=FC/APC
3=LC/UPC
4=LC/APC
5=SC/APC
6=SC/UPC
6=LC/PC
