1064nm/980nm Isolator+WDM PM Device Fiber Optic Polarization Maintaining Isolator
Product ID: 6960
$100
1064nm/980nm Isolator+WDM PM Device Fiber Optic Polarization Maintaining Isolator
| Features |  |
| High ER & High Isolation
Low Insertion Loss High Stability and Reliability |
|
| Application | |
| Fiber Amplifier
Fiber optic Instrument |
Note:
$100 is a deposit, not the final price of the product. If you are interested in the product, please contact us for the price.
Specifications:
| Parameter | 1064/980 | ||
| Isolator Stage | Single Stage | Dual Stage | |
| Signal wavelength range (nm) | 1064±5 | ||
| Peak isolation (dB) | 40 | 55 | |
| Isolation @ 23 ℃ (Signal) (dB) | ≥32 | ≥48 | |
| Insertion loss @ 23 ℃ (Signal) (dB) | ≤2.2 | ≤3.6 | |
| Pump wavelength range (nm) | 960~990 | ||
| Insertion loss (reflection band) (dB) | ≤0.6 | ||
| Extinction Ratio (dB) | Type F（Fast axis blocked） | ≥22 | |
| TypeB（Both axis working） | ≥20 | ||
| Directivity (dB) | ≥55 | ||
| Return loss (dB) | ≥50 | ||
| Power handling (mW) | ≤300 | ||
| Operating temperature (℃) | -5 ~ +50 | ||
| Storage temperature (℃) | -40 ~ +85 | ||
| Fiber Type:( Common / Pass) | PM980 | ||
| Fiber Type (Reflection) | PM980 or HI1060 | ||
|
Package dimension (mm) |
φ5.5 × L35(P1) (only for bare fiber or 900um loose tube) | ||
| L90*W20*H9.5（ABS）(P2) (only for 3mm or 2mm cable) | |||
*Above specifications are for devices without the connectors.
*For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower, and ER will be 2dB lower.
*The PM fiber and the connector key are aligned to the slow axis. And for F type, fast axis is blocked.

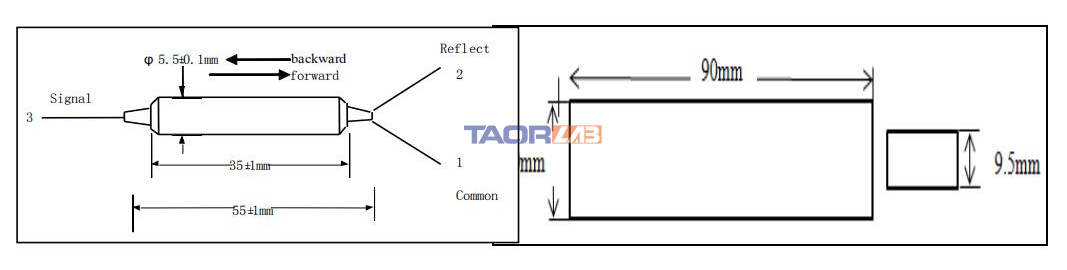

Package Dimensions
Ordering Information
| PMIWDM | Wavelength | Isolator stage | Pump Type | Working axis | Fiber Type on Reflection Port | Pigtail Type | Length | Connector |
| PMIWDM | 69=T1064nm/R980nm | S=Single Stage D=Dual Stage |
F=Forward pump B=Backward pump |
F=Fast Axis Blocked B=Both Axis Working |
2=HI1060 3=Panda Fiber |
1=250um bare fiber 2=900um loose tube 3=3mm loose tube 4=2mm loose tube |
H=0.5m 8=0.8m 1=1.0m 5=1.5m 2=2.0m 3=3.0m 4=4.0m A=2.5m B=5.0m |
0=None 1=FC/UPC 2=FC/APC 3=LC/UPC 4=LC/APC 5=SC/APC 6=SC/UPC |
