1310/1480/1550nm Polarization Maintaining Fiber Collimator PM Optical Fiber

Product ID: 7166

Add to wishlist
Compare

$100

1310/1480/1550nm Polarization Maintaining Fiber Collimator PM Optical Fiber

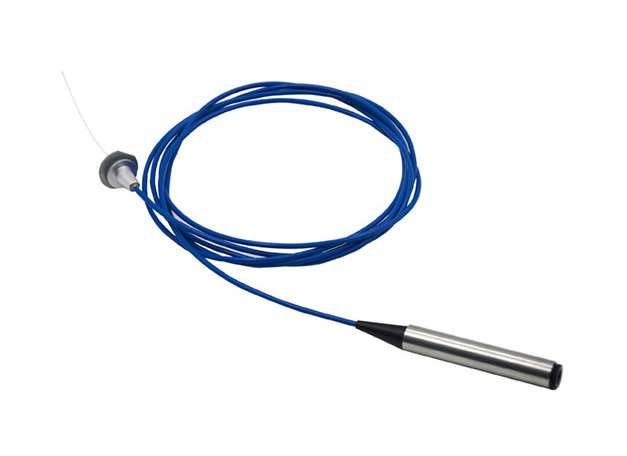

Fiber collimator is composed of pigtails and lenses accurately positioned. It can convert the transmitted light in the fiber into collimated light, or couple external parallel light into the fiber; products with different wavelengths and powers can be customized according to customer needs. , we can also provide high-power (hundred-watt level) air-cooled versions, which can be used in fiber lasers, lidar, infrared sensing, scientific research and other fields.

Note:
$100 is a deposit, not the final price of the product. If you are interested in the product, please contact us for the price.

Specifications

Parameter Unit Value
Center wavelength nm 1310/1480/1550
Working bandwidth nm ±30
Working distance mm 5-100
Spot size (1/e2) mm ≤0.6
Typical insertion loss dB 0.3
Max insertion loss dB 0.4
Return loss dB ≥50
Typical extinction ratio dB 25
Min. extinction ratio dB 23
Withstand power W 0.3, 1, 5, 10 or others
Fiber type – PM1300, PM1550or other
Fiber length m 1 or other
Connector type – FC/APC or other
Max pulling force N 5
Package size (OD 1.8mm) mm Φ3.2XL10 gold-plated tube, Φ2.8XL9 glass tube
Operating temperature ℃ -5～+70
Storage temperature ℃ -40～+85

*The temperature measurement environment is 25℃;
*The above data does not include connectors. If you add connectors, the insertion loss will increase by 0.3dB, the return loss will decrease by 5dB, and the extinction ratio of polarization-maintaining products will decrease by 2dB.

Package Dimensions


TaorLab fiber collimator

Model Information

TLPCOL
 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧
Working wavelength Working distance Casing Withstand power Fiber type Pigtail length Tail boot type Connector type
1310=1310nm
1480=1480nm
1550=1550nm

S=other

 05=5mm
50=50mm
S=other		 1=Glass sleeve
2=Gold plated casing		 00=300mW
01=1W
S=other
P13=PM1300
P15=PM1550
 08=0.8m
10=1.0m
15=1.5m
S=other		 B=250um bare fiber
L=900um loose tube
S=other		 N=None
FP=FC/PC
FA=FC/APC
S=other

*Model Reference: TLPCOL-155-50-2-00-P15-10-L-FA
Polarization-maintaining fiber collimator, center wavelength 1550nm, working distance 50mm, gold-plated tube package, power tolerance 300mW, fiber type PM1550, fiber length 1 meter, 900um loose tube, FC/APC, fiber slow axis aligned with Key key.
