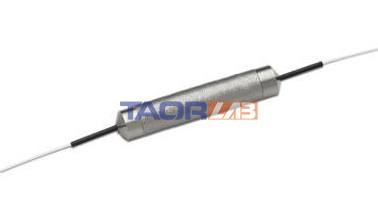

1310nm 1480nm 1550nm Mini Polarization Insensitive Isolator Fiber Optic Isolator for Sale

Product ID: 6920

Add to wishlist
Compare

$100

1310nm 1480nm 1550nm Mini Polarization Insensitive Isolator Fiber Optic Isolator for Sale

Features
Wide Operating Wavelength
High isolation & Low insertion loss &Low PDL, Mini Size High stability and reliability
Application
EDFA & Testing instruments Transmitters
WDM & DWDM System

Note:
$100 is a deposit, not the final price of the product. If you are interested in the product, please contact us for the price.

Specifications

Type  \  Parameter Single stage Dual Stage
P A P A
Operating wavelength (nm) 1310,1480, 1550
Bandwidth ±15
Peak isolation (dB) 42 40 58 56
Isolation @23℃(dB) ≥28 ≥26 ≥42 ≥40
Typ. Insertion Loss 0.35 0.40 0.40 0.50
Insertion Loss @-5 ~ +70 ℃(dB) ≤0.60 ≤0.70 ≤0.70 ≤0.90
PDL @ 23℃ (dB) ≤0.10 ≤0.15 ≤0.10 ≤0.15
PMD (ps) ≤0.2 ≤0.25 ≤0.05 ≤0.07
Return loss (dB) ≥60/55
Power handling (mW) ≤500
Fiber Type SMF-28e
Operating temperature (℃) -5~ +70
Storage temperature (℃) -40 ~ +80
Dimensions (mm) Φ3.0×L22(P1)

*Above specifications are for devices without the connectors.
*For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower

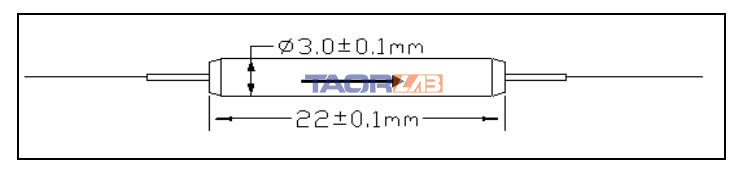

Package Dimensions


fiber isolator

Ordering Information

MPIIS Wavelength Type Grade Package Pigtail Type Length Connector
MPIIS 1310=1310nm
1480=1480nm
1550=1550nm		 S= Single stage
D= Dual Stage		 P=P Grade
A=A Grade		 1=P1 (3.0*22mm) 1=250um bare fiber
2=900um loose tube		 H=0.5m
8=0.8m
1=1.0m
5=1.5m
2=2.0m
3=3.0m
4=4.0m
A=2.5m
B=5.0m		 0=None
1=FC/UPC
2=FC/APC
3=LC/UPC
4=LC/APC
5=SC/APC
6=SC/UPC
