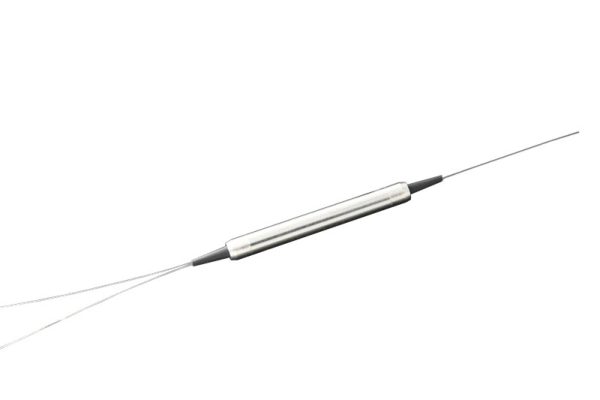

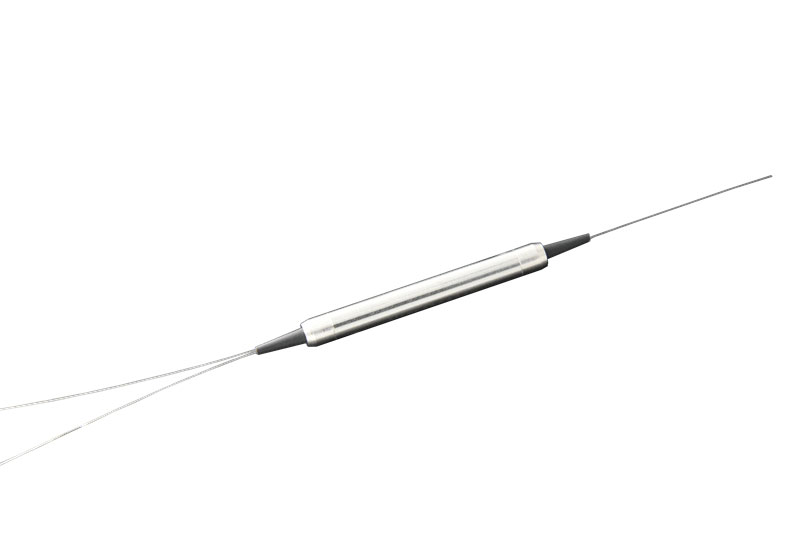

2000nm 3-port Single-mode Optical Fiber Circulator Customized Product
The three-port fiber optic circulator is a multi-port non-reciprocal optical device in which light can only propagate in one direction. If the signal is input from port 1, it will be output from port 2; if the signal is input from port 2, it will be output from port 3, and the output loss is very small; when the light is input from port 2, the loss is very large when it is output from port 1. Similarly, when light is input from port 3, the loss when output from ports 1 and 2 is also very large.
TaorLab can produce three-port, four-port, different power and different wavelength fiber optic circulators, which are widely used in fiber lasers, instrumentation, dispersion compensation devices, fiber optic sensing, scientific research and other fields.
Note:
$100 is a deposit, not the final price of the product. If you are interested in the product, please contact us for the price.
Specification
Parameter | Unit | Value |
Center Wavelength | nm | 1950/2000/2050 |
Operating Wavelength Range | nm | ±20 |
Peak Isolation (Type) | dB | 20 |
Isolation (min) | dB | 16 |
Insertion Loss(Type) | dB | 1.2 |
Insertion Loss(max) | dB | 1.5 |
Polarization Dependent Loss | dB | ≤0.15 |
Crosstalk (min) | dB | 40 |
Minimum Return Loss | dB | 50 |
Optical Power(CW) | mW | 300, 1000, 2000 Optional |
Peak Power(Pulse) | KW | <10@ns pulse |
Fiber Type | – | SMF-28e/SM1950 |
Package Size | mm | Φ5.5xL50 |
Operating Temperature | ℃ | -5 ~ +50 |
Storage Temperature | ℃ | -40 ~ +85 |
*The temperature measurement environment is 25℃;
*The above data does not include connectors. If more connectors are added, the insertion loss will increase by 0.3dB, and the return loss will decrease by 5dB.
Package Dimensions
Ordering Information
TLCIR | Working Wavelength | Average Power | Power Type | Satge Type | Fiber Type | Pigtail Length | Pigtail Type | Connector Type |
1950=1950nm 2000=2000nm 2050=2050nm |
00=500mW S=Others |
C=CW P=Pulse |
S=Single stage D=Double stage |
S2=SMF-28e S1=SM1950 |
08=0.8m 10=1.0m 15=1.5m S=Others |
B=250um bare fiber L=900um loose tube S=Others |
N=None FP=FC/PC FA=FC/APC S=Others |
*Model reference: TLCIR-2000-00-C-S-S1-10-L-FA
Three-port fiber optic circulator, center wavelength 2000nm, continuous power 500mW, single stage, fiber type SM1950, fiber length 1 meter, 900um loose tube, FC/APC.
