4 Ports Polarization Maintaining Optical Circulator PM Fiber Circulator

Product ID: 6892

Add to wishlist
Compare

$100

4 Ports Polarization Maintaining Optical Circulator PM Fiber Circulator

Features
Low Insertion Loss
High Extinction Ratio & High Isolation
High stability and reliability
Application
EDFA
Fiber Optical Instrument
Fiber Sensor



Note:
$100 is a deposit, not the final price of the product. If you are interested in the product, please contact us for the price.

Specifications

Type \ Parameter Type A Type B
Operating wavelength (nm) 1310 or 1550 1064
Bandwidth ±30 ±20 ±5
Typ. Isolation 23℃(dB) 50 30 35
Isolation 23℃(dB) ≥40 ≥20 ≥28
Typ. Insertion Loss 23℃ (dB) 0.8 0.7 2.1
Insertion Loss (-5~+70℃@1550nm;
-5~+50℃@1064nm) (dB)		 ≤1.1 ≤1.0 ≤2.8
Extinction Ratio (dB) ≥20
Cross Talk (dB) ≥50
Return loss (dB) ≥50
Power handling (CW, total) (mW) ≤500 ≤500 ≤300
Fiber Type PM1310 Panda Fiber for 1310nm,PM1550 Panda Fiber for

1550nm,PM980 Panda Fiber for 1064nm.
Operating temperature (℃) -5 ~ +70 -5 ~ +50
Storage temperature (℃) -40 ~ +85


Dimensions (mm)

 φ5.5 × L35(P1) (only for bare fiber or 900um loose tube)
L90*W20*H9.5（ABS）(P2) (only for 3mm or 2mm cable)

*Above specifications are for devices without the connectors.
*For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower, and ER will be 2dB lower. *The PM fiber and the connector key are aligned to the slow axis. And for F type, fast axis is blocked.
*The transmission optical path of A type is different from B type:Type A: 1 -> 2, 2 -> 3, 3 -> 4; Type B: 1 -> 2, 2 -> 3, 3 -> 4;4->1

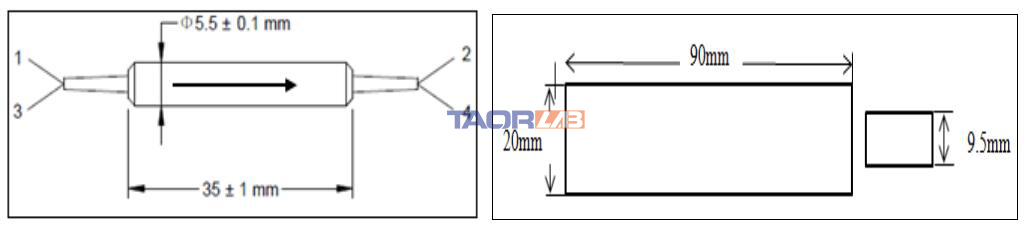

Package Dimensions

PM Circulator

Ordering Information

PMOC Wavelength Port Type Axis Alignment Package Pigtail Type Length Connector
PMOC=PMCIR 1064=1064nm
1310=1310nm
1550=1550nm		 4=4 Port A=A Type
B=B Type		 F=Fast Axis Blocked 1=P1(φ5.5 × L35)
2=P2( L90*W20*H9.5)		 1=250um bare fiber
2=900um loose tube
3=3mm loose tube
4=2mm loose tube		 H=0.5m
8=0.8m
1=1.0m
5=1.5m
2=2.0m
3=3.0m
4=4.0m
A=2.5m
B=5.0m		 0=None
1=FC/UPC
2=FC/APC
3=LC/UPC
4=LC/APC
5=SC/APC
6=SC/UPC
