525/532nm Fiber Collimator
525nm 532nm Optical Fiber Collimator With Low Insertion Loss
Product ID: 7180
$100
525nm 532nm Optical Fiber Collimator With Low Insertion Loss

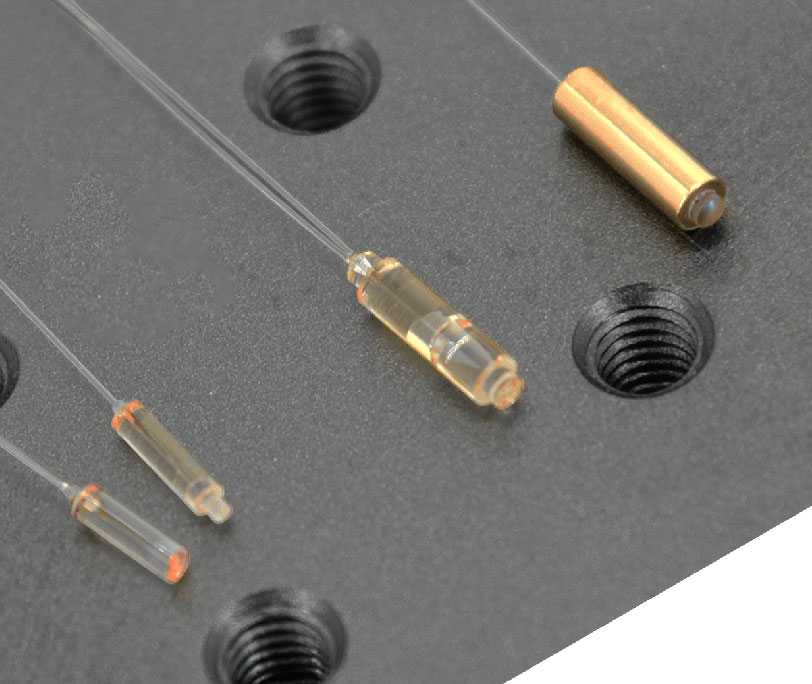

Fiber collimator is composed of pigtails and lenses accurately positioned. It can convert the transmitted light in the fiber into collimated light, or couple external parallel light into the fiber; products with different wavelengths and powers can be customized according to customer needs. , we can also provide high-power (hundred-watt level) air-cooled versions, which can be used in fiber lasers, lidar, infrared sensing, scientific research and other fields.
Note:
$100 is a deposit, not the final price of the product. If you are interested in the product, please contact us for the price.
Specifications
| Parameter | Unit | Value |
| Center wavelength | nm | 525/532 |
| Working bandwidth | nm | ±10 |
| Working distance | mm | 5-50 |
| Spot size (1/e2) | mm | ≤0.6 |
| Typical insertion loss | dB | 1.2 |
| Max insertion loss | dB | 1.6 |
| Return loss | dB | ≥50 |
| Polarization dependent loss | dB | ≤0.2 |
| Withstand power | mW | 100 |
| Fiber type | – | 460-HP or other |
| Fiber length | m | 1 or other |
| Connector type | – | FC/APC or other |
| Max pulling force | N | 5 |
| Package size (OD 1.8mm) | mm | Φ3.2XL10 gold-plated tube, Φ2.8XL9 glass tube |
| Operating temperature | ℃ | -5 ~ +70 |
| Storage temperature | ℃ | -40 ~ +85 |
*The temperature measurement environment is 25℃;
*The above data does not include connectors. If you add connectors, the insertion loss will increase by 1.2dB, the return loss will decrease by 5dB.
Package Dimensions
.jpg)
Model Information
|
TLCOL
|
① | ② | ③ | ④ | ⑤ | ⑥ | ⑦ | ⑧ |
| Working wavelength | Working distance | Casing | Withstand power | Fiber type | Pigtail length | Tail boot type | Connector type | |
|
525=525nm
532=532nm
S=other
|
05=5mm 50=50mm S=other |
1=Glass sleeve 2=Gold plated casing |
00=100mW S=other |
H46=460-HP
H6=630-HP
S=other
|
08=0.8m 10=1.0m 15=1.5m S=other |
B=250um bare fiber L=900um loose tube S=other |
N=None FP=FC/PC FA=FC/APC S=other |
*Model Reference: TLCOL-525-10-2-00-H46-10-L-FA
Fiber collimator, center wavelength 525nm, working distance 10nm, gold-plated tube package, power tolerance 100mW, fiber type 460-HP, fiber length 1 meter, 900um loose tube, FC/APC.
