915nm Single-mode Polarization Maintaining Pump Protector

Product ID: 7197

Add to wishlist
Compare

$100

915nm Single-mode Polarization Maintaining Pump Protector

The pump protector is to prevent the generated ASE back-reflected light from causing damage to the pump laser. We can provide pump protectors with different powers in the 800-2000nm band.

Note:
$100 is a deposit, not the final price of the product. If you are interested in the product, please contact us for the price.

Specifications

Parameter Unit Value
Pump laser center wavelength nm 915
Working wavelength bandwidth nm ±15
Signal wavelength range nm
1020-1120,1530-1570
Insertion loss (max)@pass wavelength dB 0.6
Isolation(min) dB 30
Extinction ratio(min) dB 20
Return loss dB 50
Withstand power CW W
0.5, 1, 5, 10 or other
Fiber type – PM980或其它
Fiber length m 1 or other
Connector type – FC/APC or other
Max pulling force N 5
Package size mm Φ5.5XL35
Operating temperature ℃ -5 ～ + 60
Storage temperature ℃ -40 ～ +85

*The temperature measurement environment is 25℃;
*If more connectors are added, the insertion loss increases by 0.3dB, the return loss decreases by 5dB, and the extinction ratio of polarization-maintaining products decreases by 2dB. The default fiber slow axis is aligned with the key.

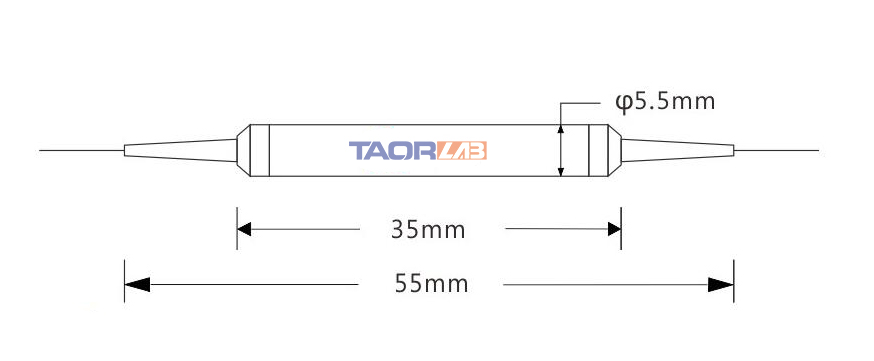

Package Dimensions

TaorLab pump protector



Model Information

TLPMPLP
 ① ② ③ ④ ⑤ ⑥ ⑦
Pump wavelength Backward Signal wavelength Withstand power Fiber type Pigtail length Tail boot type Connector type
915=915nm 1064=1064nm
1550=1550nm
00=300mW
01=1W

S=other
P9=PM980
S=other
 08=0.8m
10=1.0m
15=1.5m
S=other		 B=250um bare fiber
L=900um loose tube
S=other		 N=None
FP=FC/PC
FA=FC/APC
S=other

*Model Reference: TLPMPLP-915-1064-01-P9-10-B-N
Single-mode polarization-maintaining pump protector, pump wavelength 915nm, backward signal 1064nm, maximum withstand rate 1W, fiber type PM980, pigtail length 1 meter, bare fiber, no connector.
