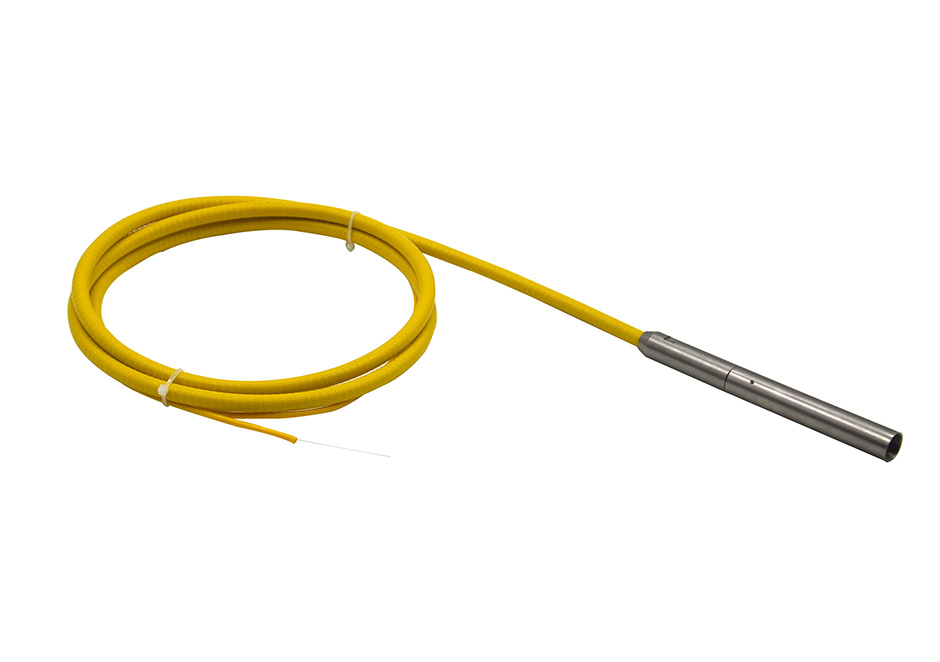

980/1030/1064nm Optical Fiber Collimator With Low Insertion Loss
Fiber collimator is composed of pigtails and lenses accurately positioned. It can convert the transmitted light in the fiber into collimated light, or couple external parallel light into the fiber; products with different wavelengths and powers can be customized according to customer needs. , we can also provide high-power (hundred-watt level) air-cooled versions, which can be used in fiber lasers, lidar, infrared sensing, scientific research and other fields.
Note:
$100 is a deposit, not the final price of the product. If you are interested in the product, please contact us for the price.
Specifications
| Parameter | Unit | Value |
| Center wavelength | nm | 980/1030/1064 |
| Working bandwidth | nm | ±30 |
| Working distance | mm | 5-100 |
| Spot size (1/e2) | mm | ≤0.6 |
| Typical insertion loss | dB | 0.4 |
| Max insertion loss | dB | 0.5 |
| Return loss | dB | ≥50 |
| Polarization dependent loss | dB | ≤0.2 |
| Withstand power | W | 0.3, 1, 5, 10 or others |
| Fiber type | – | Hi1060 or other |
| Fiber length | m | 1 or other |
| Connector type | – | FC/APC or other |
| Max pulling force | N | 5 |
| Package size (OD 1.8mm) | mm | Φ3.2XL10 gold-plated tube, Φ2.8XL9 glass tube |
| Operating temperature | ℃ | -5 ~ +70 |
| Storage temperature | ℃ | -40 ~ +85 |
*The temperature measurement environment is 25℃;
*The above data does not include connectors. If you add connectors, the insertion loss will increase by 0.3dB, the return loss will decrease by 5dB.
Package Dimensions
.jpg)
Model Information
|
TLCOL
|
① | ② | ③ | ④ | ⑤ | ⑥ | ⑦ | ⑧ |
| Working wavelength | Working distance | Casing | Withstand power | Fiber type | Pigtail length | Tail boot type | Connector type | |
|
980=980nm
1030=1030nm
1064=1064nm
S=other |
05=5mm 50=50mm S=other |
1=Glass sleeve 2=Gold plated casing |
00=300mW 01=1W S=other |
H7=780-HP
H1=Hi1060
S=other |
08=0.8m 10=1.0m 15=1.5m S=other |
B=250um bare fiber L=900um loose tube S=other |
N=None FP=FC/PC FA=FC/APC S=other |
*Model Reference: TLCOL-1064-50-2-00-H1-10-L-FA
Fiber collimator, center wavelength 1064nm, working distance 50mm, gold-plated tube package, power withstand 300mW, fiber type Hi1060, fiber length 1 meter, 900um loose tube, FC/APC.
