Spectral Standard Parts Cosine Corrector CC-UV Irradiation Measurement Detector

Product ID: 6142


$200

Spectral Standard Parts Cosine Corrector CC-UV Irradiation Measurement Detector

The cosine corrector is an optical element used for spectral radiation sampling, which is used to collect radiation (light) within a 180° solid angle, thereby eliminating the optical coupling problem caused by other sampling devices due to the limitation of the geometric structure of light collection and sampling.

The effective area of the CC-UV cosine corrector is 4.8mm. It adopts imported PTFE material and can be used in the wavelength range of 200~2500nm. The cosine corrector can be screwed with any multimode fiber with SMA connector. When coupled to a miniature fiber optic spectrometer, these cosine correctors can be used to measure solar radiation, ambient light, lighting, and analyze LED and laser light sources.

Features:
The CC-UV cosine corrector is designed to connect with SMA905 fiber. It is used for relative spectral intensity and absolute spectral intensity measurement, emission spectrum measurement, and analysis of LED light source and laser light source.
Scattering material: UV-VIS or VIS-NIR
The scattering material of the cosine corrector can be a thin milky white, Spectralon (200-2500 nm), located at the end of the product.

[Specification]

Model CC-UV CC-UV-1 CC-3
Optical diffuser Spectralon Spectralon Opal glass
Wavelength range 200-2500 nm 200-2500 nm 350-1000 nm
Size (outer diameter) 6.35 mm 6.35 mm 6.35 mm
Length (external) 14.5mm 14.5mm 14.5mm
Diffuser (diameter) 4900 µm 4900 µm 4900 µm
Diffuser (thickness) 500 µm 1000 µm 1000 µm
Angle of view 180° 180° 180°
Connectable Fiber with SMA905 connector Fiber with SMA905 connector Fiber with SMA905 connector

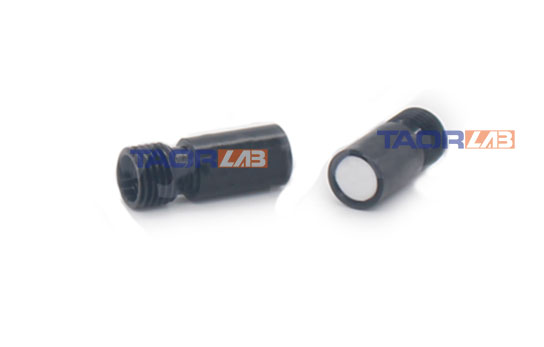

Cosine correctorCosine corrector

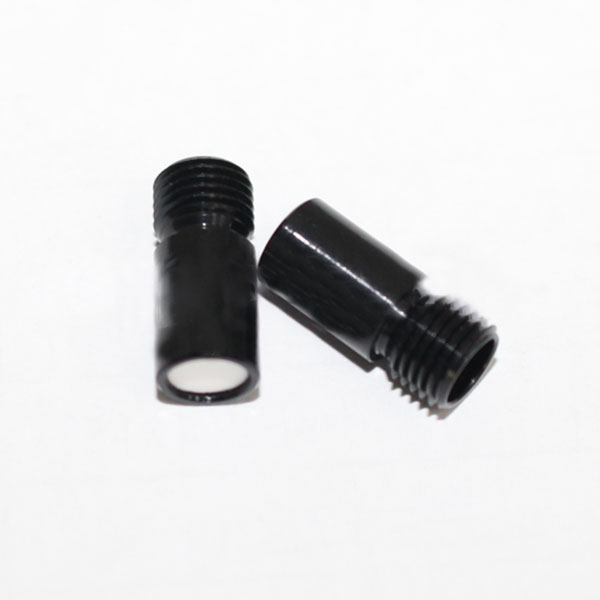

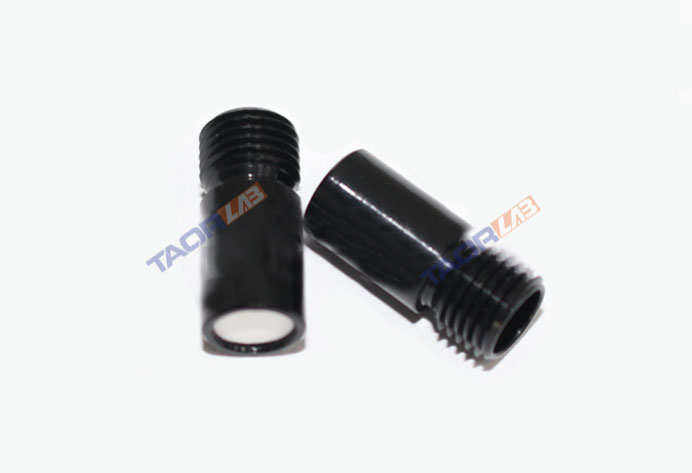

Cosine corrector

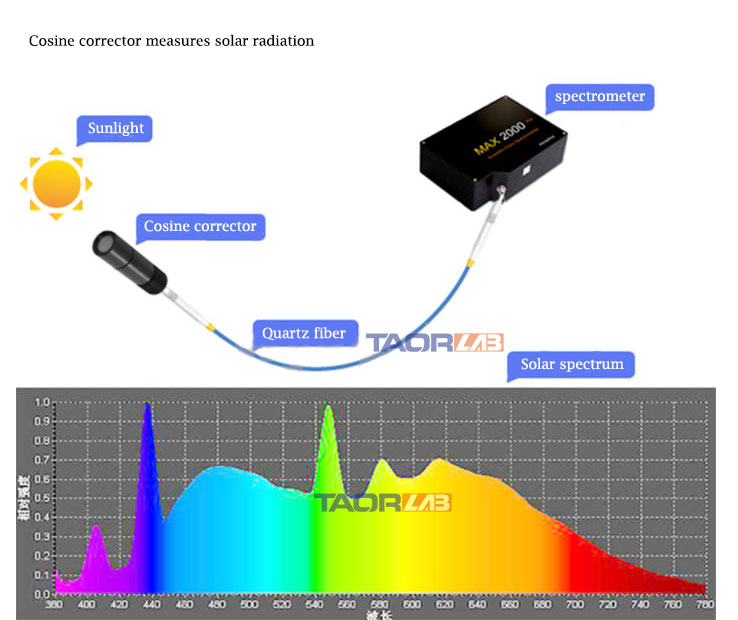

Cosine corrector irradiation detection:

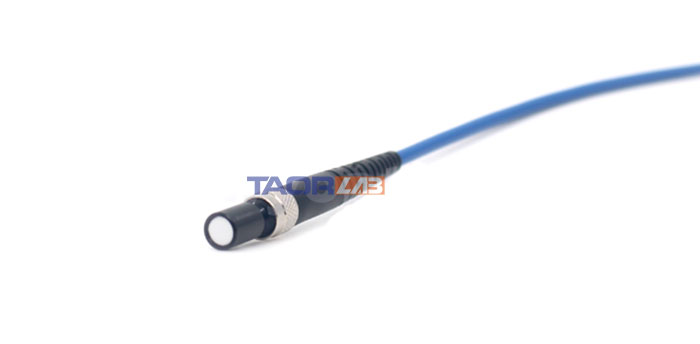

Cosine corrector
