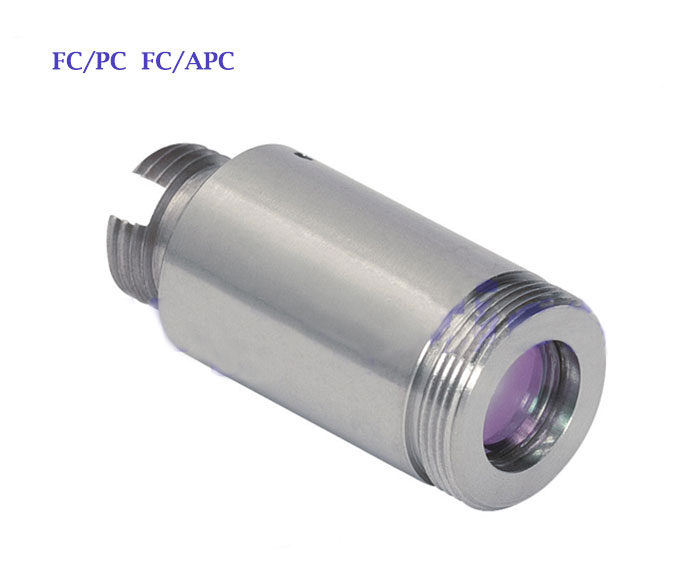

COL6 Fiber Collimator Focus Lens Fiber Coupler Φ6mm FC/PC FC/APC Connector
This product can be used for fiber collimation or for coupling focusing. The use of collimation, either single mode or multimode fiber can be used. If used as a coupling focus, it can only be used with multimode fiber (numerical aperture 0.12~0.22NA, core diameter ≥50μm).
[Specifications]
Product Name: Fiber Collimator
Model: COL6-550-PC /COL6-980-PC /COL6-1310-PC /COL6-550-APC /COL6-980-APC /COL6-1310-APC
Connector: FC/APC or FC/PC

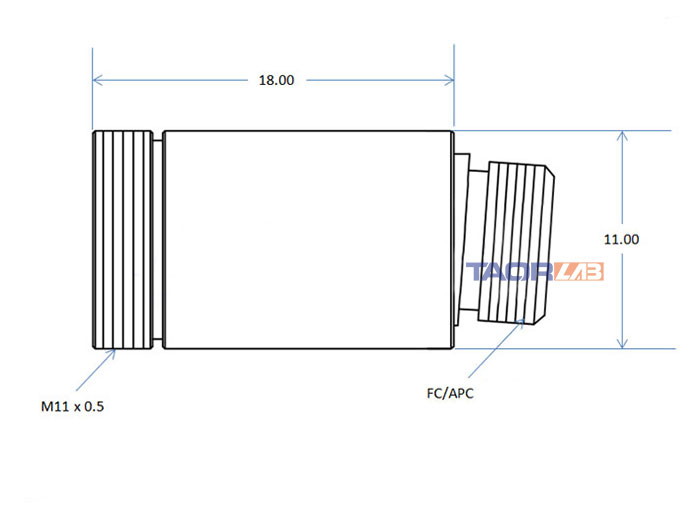

External Thread: M11 x 0.5
Lens Diameter: 6 mm
Lens Focal Length: 15 mm
Optical Parameters: 1 aspheric lens
Working Temperature: -40~150 °C
Housing Material: copper nickel plated
Model | Wavelength Range | Fiber Interface |
COL6-550-PC | 350~800nm | FC/PC |
COL6-980-PC | 600~1050nm | FC/PC |
COL6-1310-PC | 1050~1620nm | FC/PC |
COL6-550-A | 350~800nm | FC/APC |
COL6-980-A | 600~1050nm | FC/APC |
COL6-1310-A | 1050~1620nm | FC/APC |
