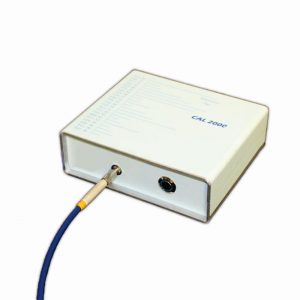

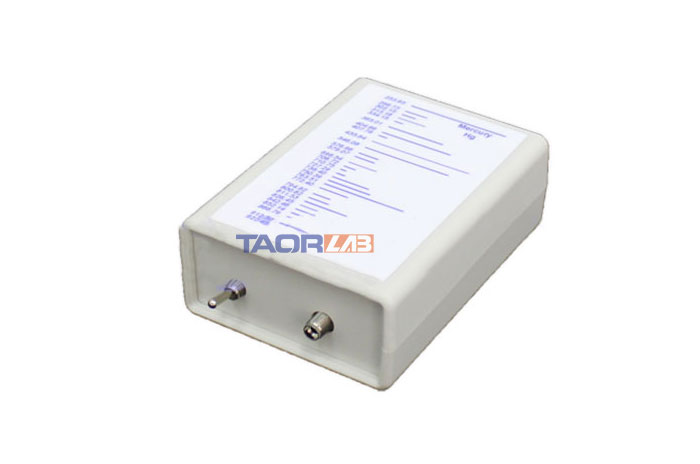

HG-1 Mercury Argon Lamp Wavelength Calibration Fiber Light Source Spectrometer Calibration

HG-1 Mercury Argon Lamp Wavelength Calibration Fiber Light Source Spectrometer calibration

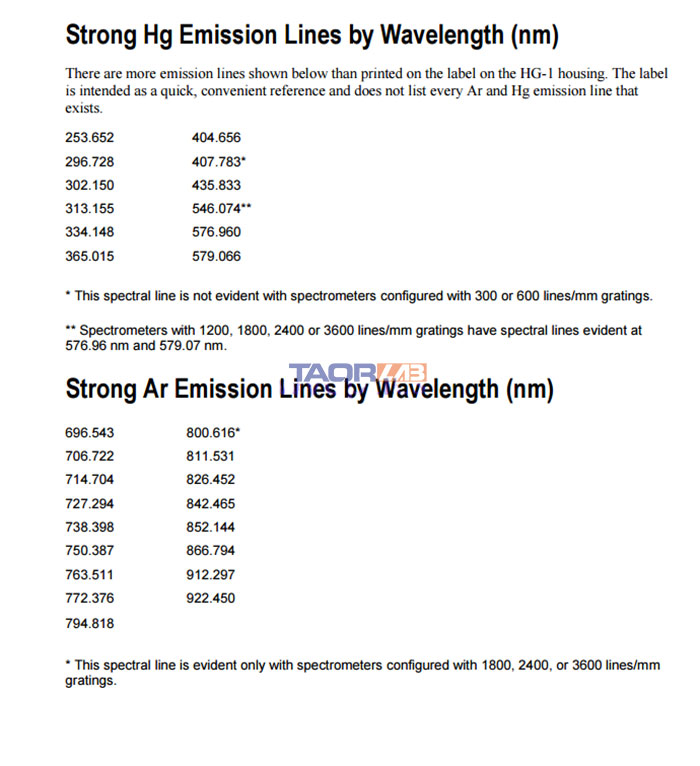

TaorLab’s mercury-argon lamp is a compact, low-cost HG-1 mercury-argon calibration light source that is used for wavelength calibration of the UV-VIS-NIR spectroscopy system. HG-1 produces a spectral range of 253-1700nm ultraviolet-visible band, which is used for fast and reliable wavelength correction. Printed easily identifiable mercury and argon transmission line on the housing

[Features]
1. SMA905 interface, FC interface optional.
2. Wavelength range: 253-1700nm

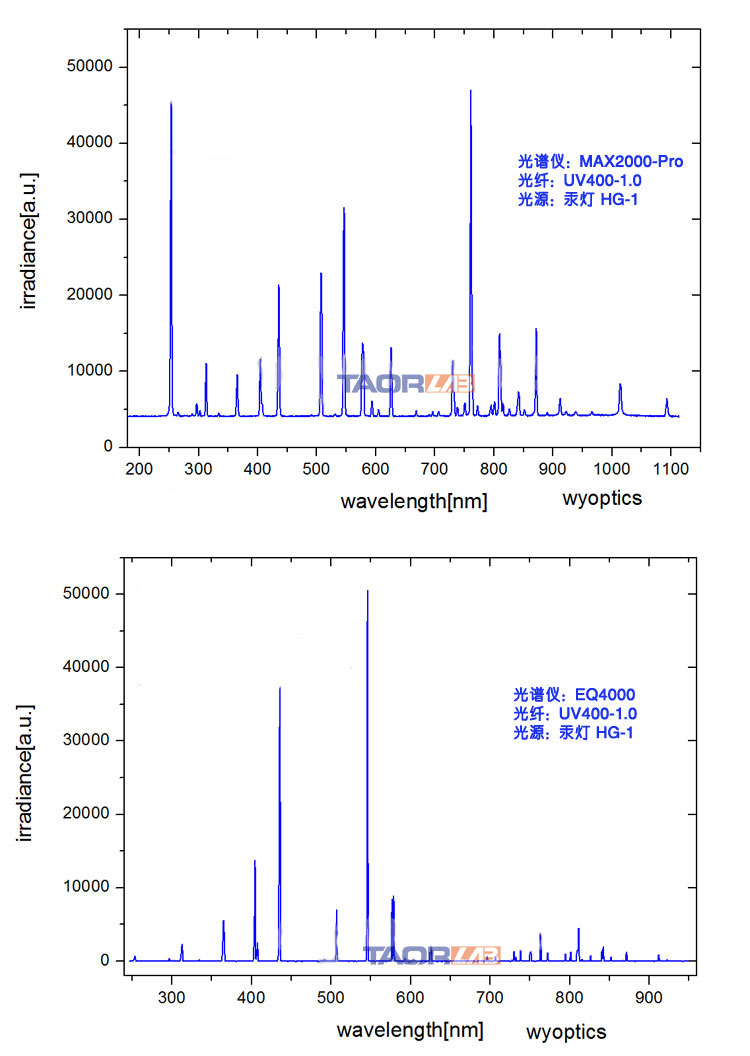

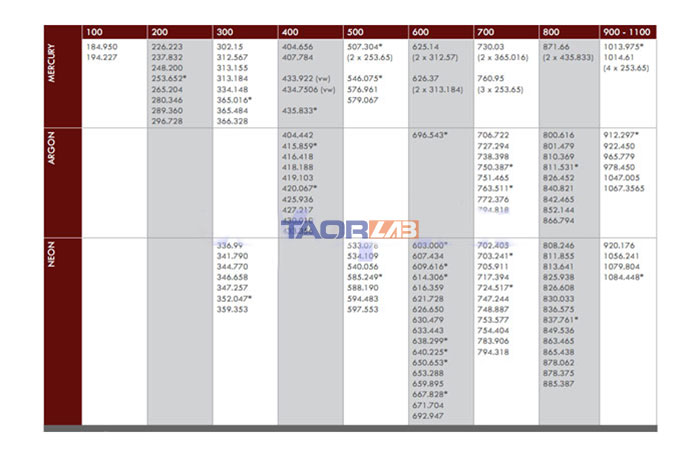

3. Calibrate the light source, generate mercury and argon atomic emission lines to calibrate the spectrometer.
4. Easy to operate, and it can be integrated with the spectrometer system only by power supply and fiber.

[Specification]
Product Name: Mercury Argon Lamp
Model: HG-1
Light Source: Low-voltage mercury & argon lamps
Wavelength Range: 253~1704nm
Dimensions: 13.5*8.5*4.5 cm
Weight: 40g
Power Consumption: 250mA at 12V DC
Power Requirements: 12 VDC (included in the product)
Lamp Life: about 3000 hours (under 20 mA)
Aperture: 3 mm
Connector: SMA905 (FC can be customized.)
