Silica Optical Fiber
Reflective Fiber Probe High Temperature Probe 1.5mm~3.2mm Fiber Probe
Product ID: 6208
$100
Reflective Fiber Probe High Temperature Probe 1.5mm~3.2mm Fiber Probe
Note:
(1) This is the deposit, not the final product price.
For the actual product price, please contact us, different specifications have different prices.
(2) Lead Time: 3~4 weeks.

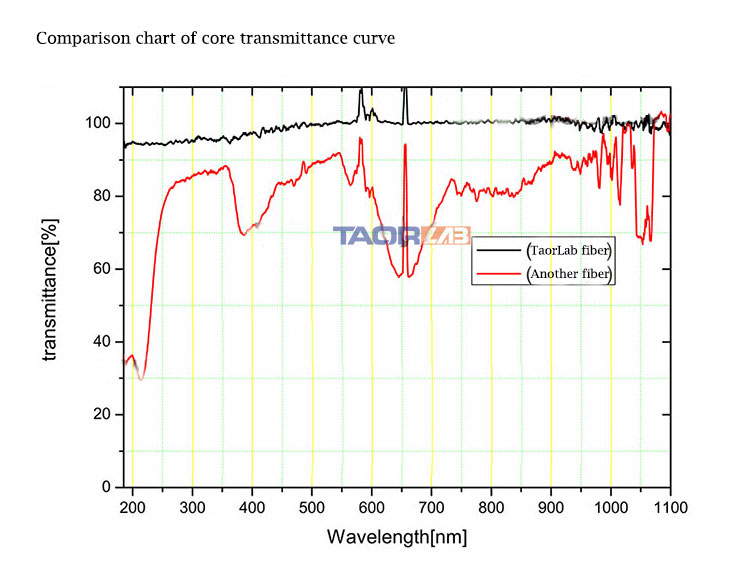

Our quartz optical fiber products are manufactured and processed with German imported fiber cores, which have high transmittance and stability.
Fiber Probe:

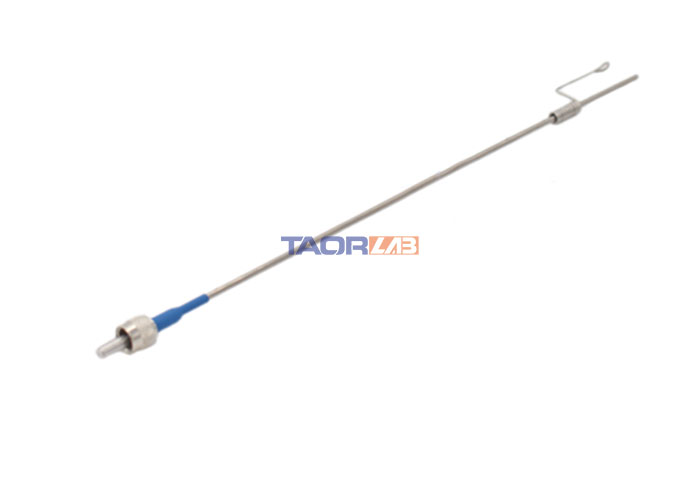

For some medical and semiconductor applications, a (very) small tip is required for reflectance measurement. TaorLab offers two standard diameter small tip reflection probes, 1.5mm, 2.5mm or 3.2mm, each tip is usually 100 mm long.
.jpg)

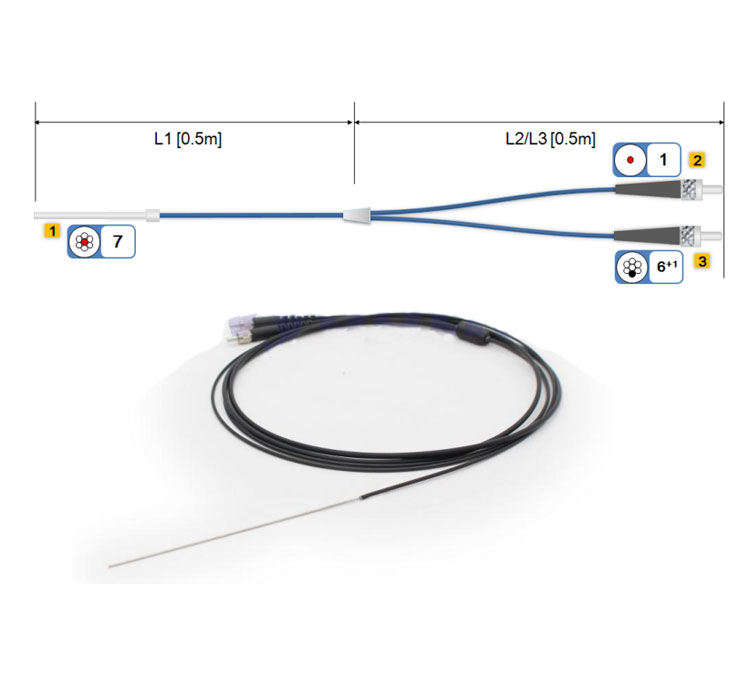

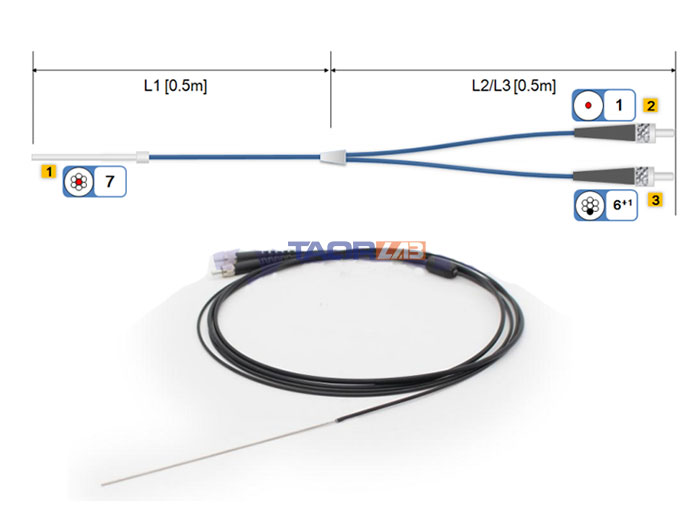

The probe is equipped with one or six 200μm (optionally 200~600um) illuminating fiber can be connected to the light source, and a reading fiber to measure reflection by connecting to a spectrometer.
| Model | FIB-xxx200-Y7xx-1.0 |
| Description | Reflective probe, 1.5~3.2mm diameter, 100mm length, 7×200μm fiber, 2m length |
| Fiber | 7 optical fibers with 200μm core, 6 optical fibers, 1 reading optical fiber, NA = 0.22 |
| Wavelength range | 200~1100nm or 400~2500nm |
| Probe | Stainless steel cylinder, length 100mm×1.5, 2.5 or 3.2mm diameter (customizable) |
| Connector | SMA905 connector or FC connector |
| Protective Case | Blue PVC casing, outer diameter: 3mm |
| Temperature | 20ºC~65ºC |
| Bending | Minimum bending radius: short-term (a few seconds) 2cm, long-term: 12cm |
