In-line Polarizer
In-Line Polarizer ILP Optic Fiber Polarizer with High Extinction Ratio
Product ID: 6905
$100
In-Line Polarizer ILP Optic Fiber Polarizer with High Extinction Ratio
| Features |  |
| Low Insertion Loss High Extinction Ratio & High Isolation High stability and reliability |
|
| Application | |
| Fiber Optical Instrument Fiber Sensor |
Note:
$100 is a deposit, not the final price of the product. If you are interested in the product, please contact us for the price.
Specifications
| Type & Parameter | Value | |||
| Center wavelength (nm) | 1310, 1550 | 1030,1064 | 980 | 850 |
| Bandwidth (nm) | ±50 | ±30 | ±10 | ±10 |
| Typ. Insertion Loss at 23℃ (dB) | 0.30 | 0.40 | 0.7 | 0.8 |
| Insertion Loss at 23℃ (dB) | ≤0.50 | ≤0.60 | ≤0.9 | ≤1.0 |
| Typ. Extinction Ratio 23℃ (dB) | 30 | 30 | 28 | 28 |
| Extinction Ratio 23℃ (dB) | ≥28 | ≥28 | ≥26 | ≥25 |
| Fiber Type |
PM1310,PM1550 |
PM980 HI1060 |
PM980 HI1060 |
PM850 |
| Return loss (dB) | ≥50 | |||
| Power handling （CW）(mW) | ≤300 | |||
| Operating temperature (℃) | -5~+70 | |||
| Storage temperature (℃) | -40 ~ +85 | |||
| Dimensions (mm) | φ5.5×L35(P1) | |||
*For device with connector, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower.
*The default connector key is aligned to slow axis.

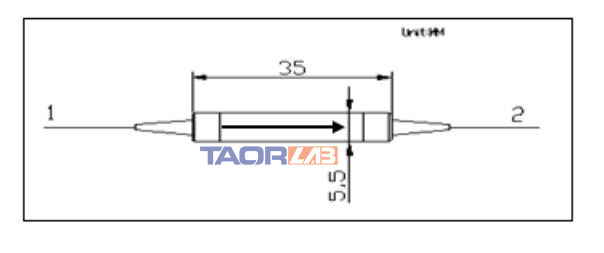

Package Dimensions
Ordering Information
| ILP | Wavelength | 000 | Fiber Type on port1&port2 | Pigtail Type | Length | Connector |
| ILP | 0850=850nm 0980=980nm 1030=1030nm 1064=1064nm 1310=1310nm 1550=1550nm |
000 | 11=PM fiber on port1&port2 12=PM fiber on port1,non PM fiber on port2 21=non PM fiber on port1, PM fiber on port2 22=non PM fiber on port1&port2. |
1=250um bare fiber 2=900um loose tube 3=3mm loose tube 4=2mm loose tube |
H=0.5m 8=0.8m 1=1.0m 5=1.5m 2=2.0m 3=3.0m 4=4.0m A=2.5m B=5.0m |
0=None 1=FC/UPC 2=FC/APC 3=LC/UPC 4=LC/APC 5=SC/APC 6=SC/UPC |
