253nm~1700nm Mercury Argon Light Spectrometer Calibration SMA905 Fiber Light Source

253nm~1700nm Mercury Argon Light Spectrometer Calibration SMA905 Fiber Light Source

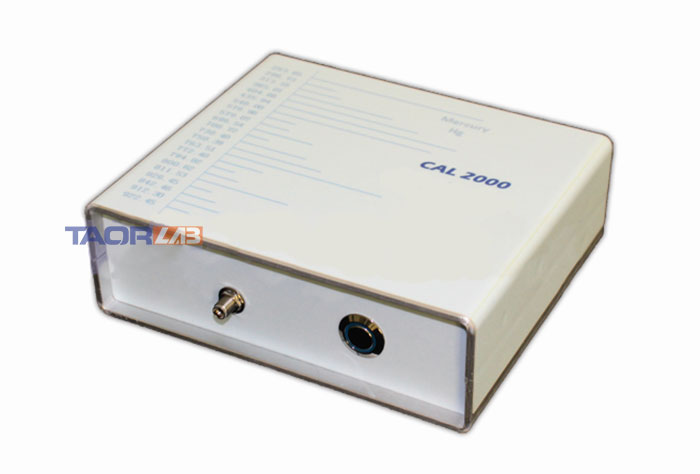

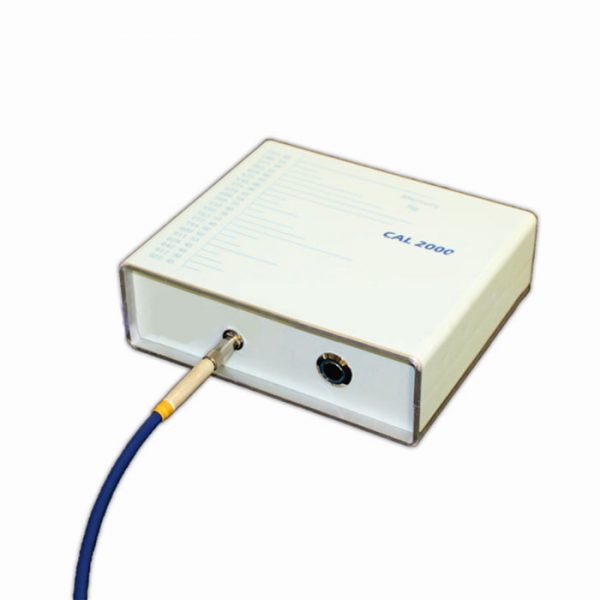

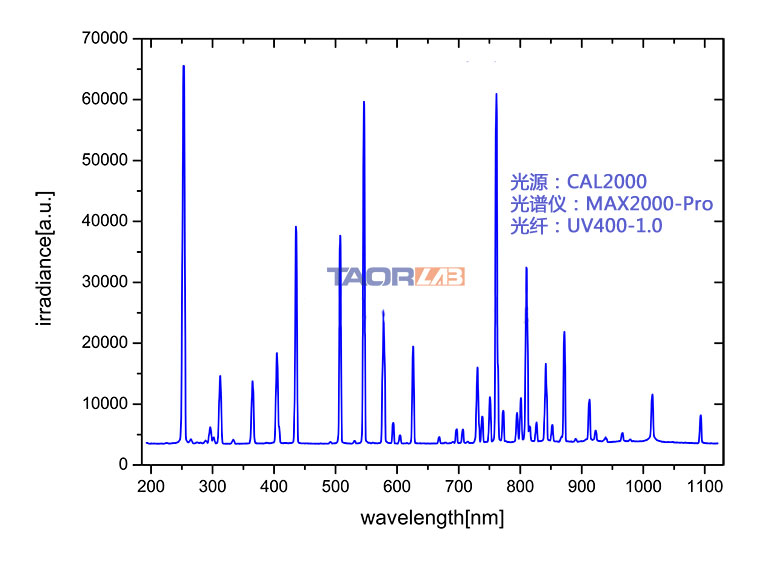

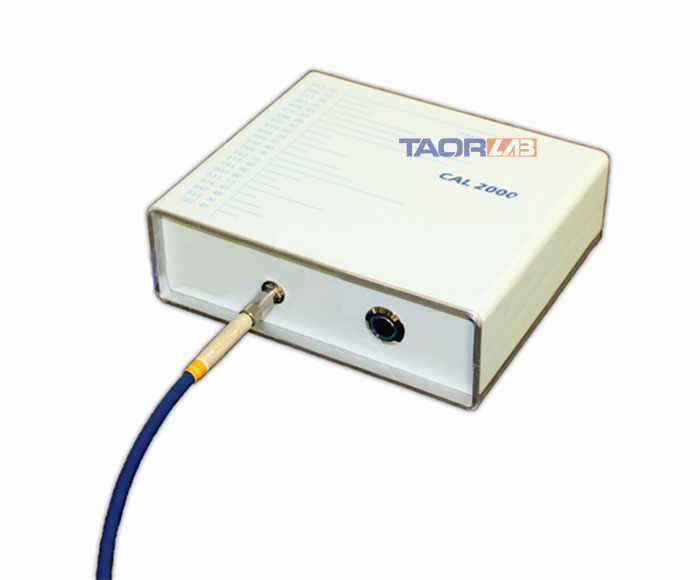

Our spectral wavelength calibration light source is used to calibrate the spectrometer system. It produces low-pressure mercury and argon atomic emission lines with a wavelength range of 253-1700nm. Used to quickly and reliably calibrate the spectrometer

Recommended wavelength: 253.652nm/404.656nm/546.074nm/576.96nm/696.543nm/826.452nm/912.297nm

[Features]
1. Calibrate the light source. Generate mercury and argon atomic emission lines to calibrate the spectrometer.
2. Easy to operate. Only power and optical fiber can be integrated with the spectrometer system.

[Specification]
Product Name: Mercury Argon Light Source
Wavelength Range: 253~1700nm
Energy Consumption: 3W
Amplitude Stability: ~1 minute
Connector: SMA905
Power Supply: AC 85~250V 50~60HZ
Size: 130*155* 55 (mm)
Net Weight: 410g
Warm-up Time: ~30 minutes
Lamp Life: ~3000 hrs

Note: Our spectrometer is carefully calibrated. However, as time goes by and the environment changes, the wavelength will drift slightly. If wavelength accuracy is more important for your application, you can consider calibrating the wavelength every time.

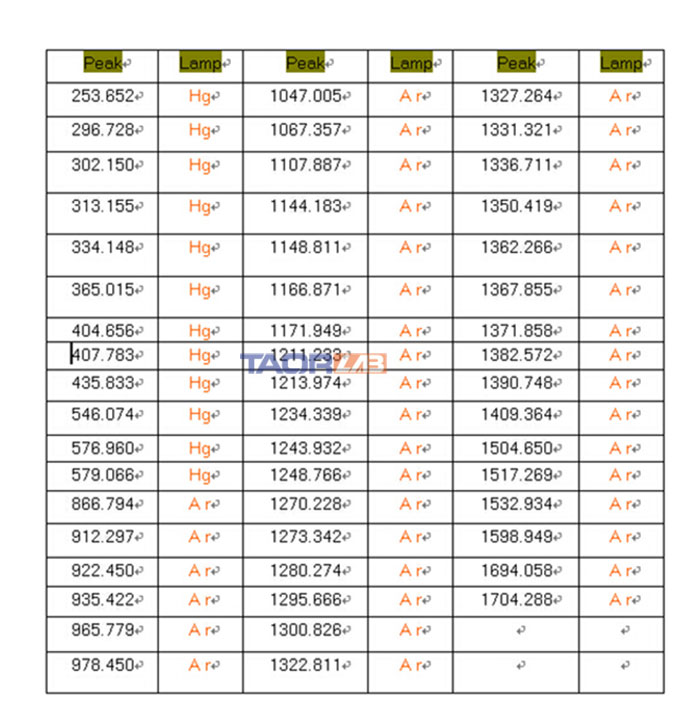

Adjust the optical spectrometer and use the following spreadsheet feature peaks to perform linear regression. The calibration light source can use 85~250V AC power supply.
