Low IL Multimode Manual Variable Optical Attenuator (MVOA) with MM Fiber
Product ID: 6944
$100
Low IL Multimode Manual Variable Optical Attenuator (MVOA) with MM Fiber
| Features |  |
| High precision
Wide attenuation range Low IL Compact size |
|
| Application | |
| Optical communication systems test
Optics lab use |
Note:
$100 is a deposit, not the final price of the product. If you are interested in the product, please contact us for the price.
Specifications
| Parameter |
Value |
|
| Wavelength (nm) | 850, 1310 | 850&1310 |
| Bandwidth (nm) | ±40 | |
| Attenuation Range (dB) | 0.8~30 | 1.0~30 |
| Insertion Loss | ≤0.8 | ≤1.0 |
| Return Loss (dB) | ≥30 | |
| Fiber Type | Multimode Fiber 50/125 or 62.5/125 | |
| Adjustment Precision (dB) | 0.02 | |
| Operating Temperature | 0 ~ +70 | |
| Storage Temperature | -40 ~ + 80 | |
| Dimension (LxMxH) (mm) | 26x16x8(P1) | |
*The above value is not include conenctor loss
*For devices with connectors, IL will be 0.2dB higher and RL will be 20dB lower.

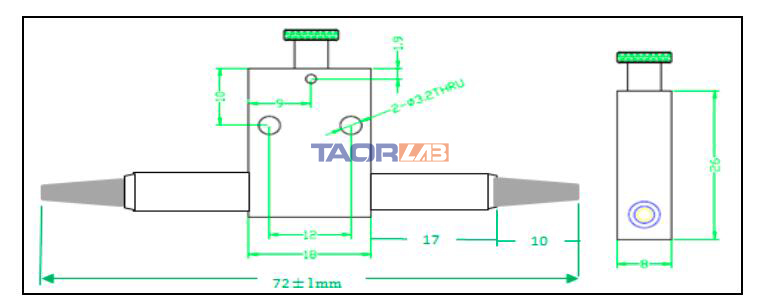

Package Dimension
.jpg)
Ordering Information
| MMVOA | Wavelength | Adjustment Type | Fiber Type | Pigtail Type | Length | Connector |
| MMVOA | 0850=850nm 1310=1310nm 8513=850/1310nm |
1=Hand Adjustment | 50=MM50/125 62=MM62.5/125 |
1=250um bare fiber 2=900um loose tube 3=3mm loose tube 4=2mm loose tube |
H=0.5m 8=0.8m 1=1.0m 5=1.5m 2=2.0m 3=3.0m 4=4.0m A=2.5m B=5.0m |
0=None 1=FC/UPC 2=FC/APC 3=LC/UPC 4=LC/APC 5=SC/APC 6=SC/UPC |
