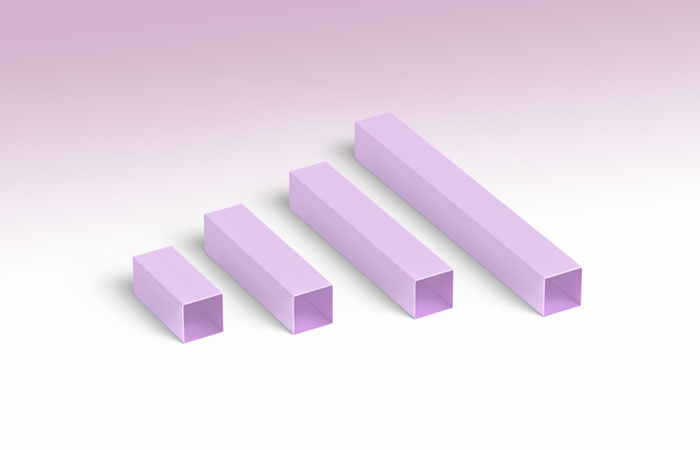

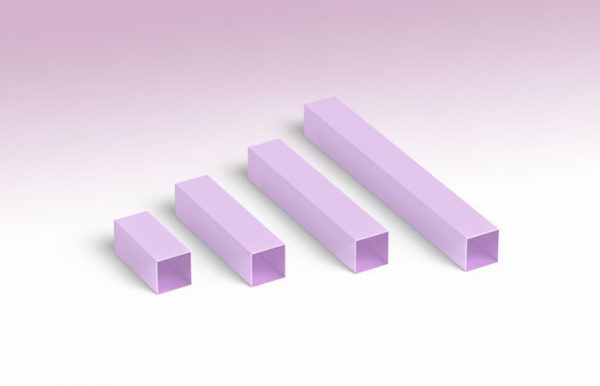

Nd:YLF – Laser Crystal – Gain Medium – Customized Products
Nd: YLF crystal product, also known as neodymium doped lithium yttrium fluoride, is a laser crystal product with excellent comprehensive performance. Nd: YLF in mode-locked laser, continuous excitation. It is widely used in the field of light and material processing. Neodymium: lithium yttrium fluoride (Nd: YLF) is an alternative medium of Nd: YLF, which is used to work in the near infrared and-Laser is generated at 1047nm and 1053nm. When the pump wavelength is 808nm,Nd: YLF can be pumped by lamp and diode. The product has a large fluorescent linewidth, low thermal lens effect, natural polarization. The main advantages of nd: YLF are that the laser has a relatively long fluorescence lifetime at -1047nm and 1053nm, and produces Generate high pulse energy. It can be used in linearly polarized resonators, mode-locked lasers, diode-pumped Nd: YLF lasers, Ti: sapphire chirped pulse amplifiers Products. In addition, the gain and emission wavelength of Nd: YLF is related to polarization: π polarization is strong at 1047nm, σ Polarization is lower at 1053nm Weak. The 1053 nm line is very suitable for the gain peak of Nd: glass, so the Nd: YLF laser is usually used as the Nd: YLF laser generator and subsequent preamplifier of Nd: glass amplifier.
Note:
$100 is a deposit, not the final price of the product. Please contact us for price if needed.
Features
Natural polarization
Super fluorescent line width
Low thermal lens effect
High uv transparency 4F3/2 nd level of long life
Much more than that of Nd: YAG soft, crisp
Based on the continuous laser with low light threshold
High power, low beam divergence, effectively the single mode of operation
Applications
Mode-locked laser
Ultrashort pulse laser
Material processing, welding, cutting
Ti: sapphire chirp pulse amplifier
Diode-pumped Nd: YLF laser
1047 nm and 1053 nm cw pulse
Technical Characteristics
| Absorption Peak Wavelength | 792 nm |
| Peak Absorption Coefficient | 10 cm-1 |
| Peak Absorption Bandwidth | ~5 nm |
| Laser Wavelength | 1047，1053 nm |
| 4F3/2Nd Level Lifetime | 485μs |
| Emission Cross Section | 15×10-20(e∥C)cm2@1047nm10×10-20(e⊥C)cm2@1053 nm |
| Refractive Index@1064 nm | no=1.448 ne=1.470 |
| Crystal Structure | Quadrilateral |
| Density | 3.95g/cm3 |
| Mohs Hardness | 5 |
| Thermal Conductivity | 6Wm-1K-1 |
| dn/dT | -4.6×10-6(∥c)K-1,
-6.6×10-6(∥a)K-1 |
| Coefficient of Thermal Expansion | 8×10-6(∥c)K-1,
13×10-6(∥a)K-1 |
| Typical Doping Level | 1-2 at.% |
Standard
| Orientation | a-Cutting，c-Cutting |
| Transparent Aperture | >90% |
| Surface Tolerance | +0/-0.1mm |
| The Length of Tolerance | ±0.1mm |
| Parallelism Error | <10 arcsec |
| Perpendicularity Error | <10 arcmin |
| Protect the Tank | <0,1 mm @ 45˚ |
| Surface Quality | 10-5 S-D |
| Surface Flatness | <λ/8@6328 nm |
| Wavefront Aberration | λ/4@6328 nm |
| Coating | R<0.5%@790-810 nm +R<0.2%@1047-1053 nm |
| Laser Damage Threshold | >10 J/cm2@1064 nm，10 ps |

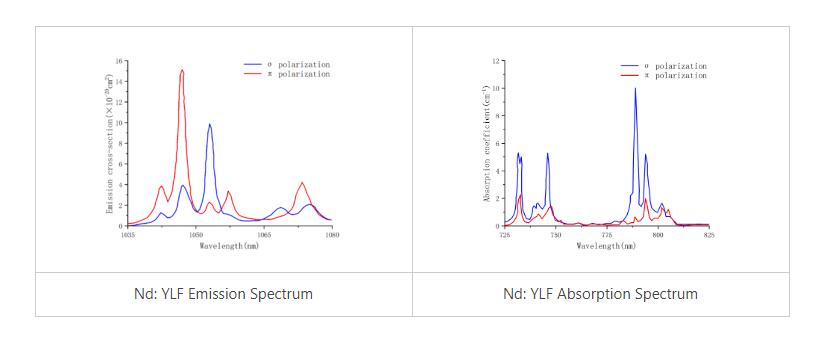

Spectrum
