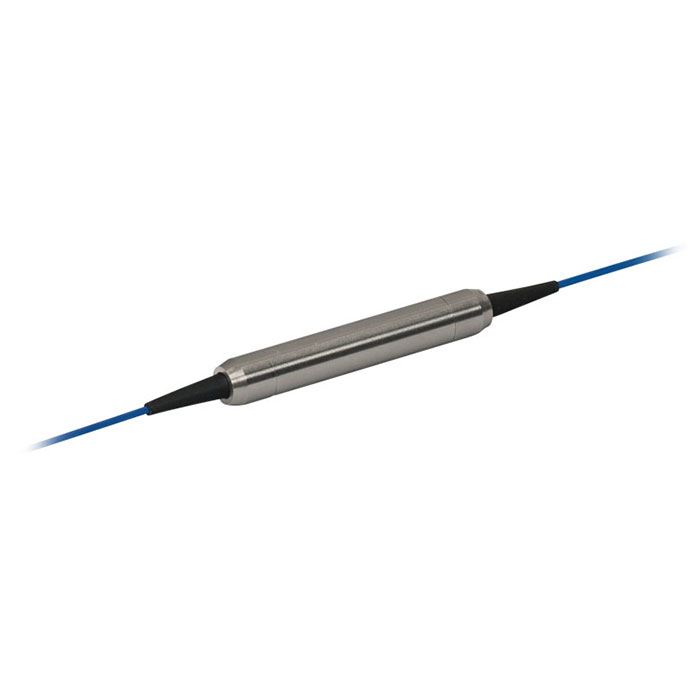

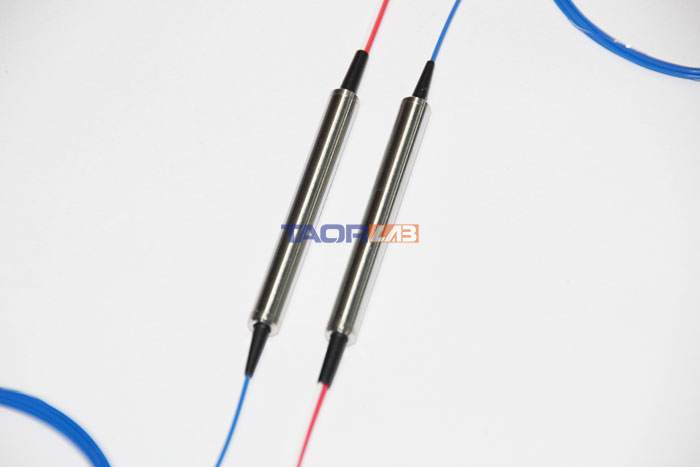

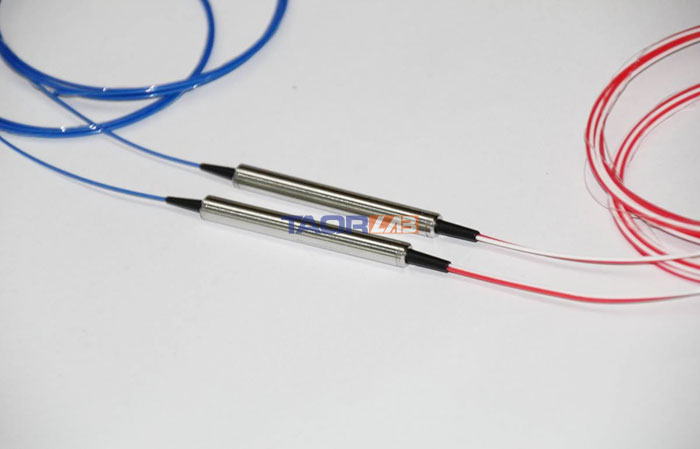

Custom Optical Circulator 1310nm 1550nm SM/MM/PM Fiber Customizable

Product ID: 6280

Add to wishlist
Compare

$100

Custom Optical Circulator 1310nm 1550nm SM/MM/PM Fiber Customizable

The optical circulator is a device that realizes the non-reversible transmission of the optical path. It guides the reverse transmission light, separates it from the forward transmission light spatially, and outputs it from another port. This feature is important for the bidirectional optical signal Transmission and communication are of great significance.

[Features]
Low insertion loss
Wide bandwidth and high isolation
Low polarization dependent loss
High reliability and high stability
Compact embedded package
Optical path without glue

[Applications]
Optical amplifier
Metropolitan Area Network
Signal upload and download
Dispersion compensation
Two-way communication

[Specification]

Parameter Unit Grade P Grade A
Center Wavelength nm 1310 or 1550
Working Wavelength Bandwidth nm λc±30 λc±30
Typical Insertion Loss dB ≤0.6 ≤0.9
Maximum Insertion Loss dB ≤0.8 ≤1.1
Channel Isolation Peak dB ≥50 ≥40
Minimum Channel Isolation dB ≥40 ≥38
Polarization Dependent Loss dB ≤0.1 ≤0.15
Return Loss dB ≥50 ≥50
Carrying Power mW 500 500
Pigtailed Type Single-mode bare fiber or 0.9mm loose tube
Operating Temperature ℃ -5 to 70
Storage Temperature ℃ -40 to 85
Package Size mm Φ5.5*L50 or L45

Note:
(1) $100 is the product deposit, not the final product price.
(2) The minimum order quantity is 5pcs;
(3) The customizable parameters are as follows:

Parameter Customizable Options
Fiber Type SM, PM, MM
Working Wavelength(nm) 1310nm, 1550nm
Package Type(mm) 5.5*35, 5.5*50
Pigtailed Type 250μm bare fiber, 0.9mm/2.0mm/3.0mm loose tube, 0.9mm/2.0mm/3.0mm tight tube
Fiber Length(m) 0.5, 1, 1.5, 2, 2.5, 3

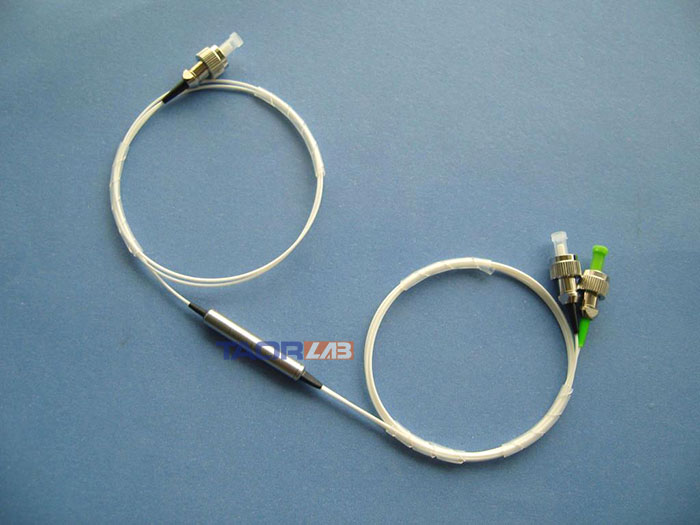

Connector None, SC/UPC, SC/CAPC, FC/UPC, FC/APC, LC/UPC, LC/APC
