PM Patchcord

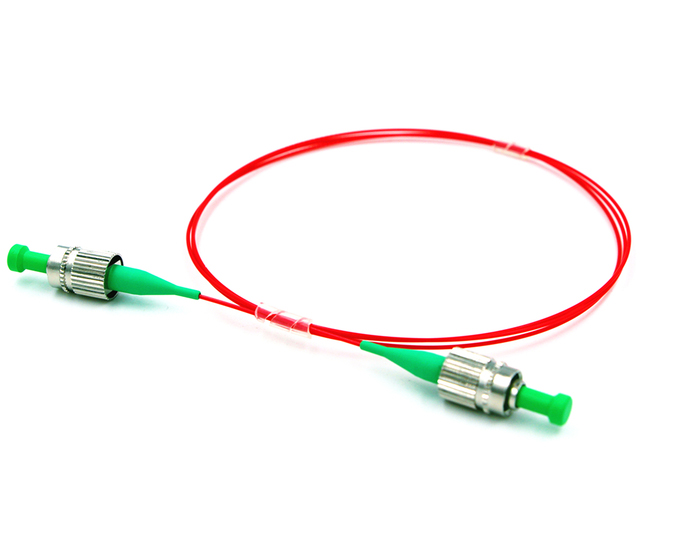

Polarization Maintaining Fiber Patchcord Low Insertion Loss PM Patchcord
Product ID: 6877
$100
Polarization Maintaining Fiber Patchcord Low Insertion Loss PM Patchcord
| Features |  |
| Low Insertion Loss High Return Loss & ER High Stability and reliability |
|
| Application | |
| Fiber Laser Fiber Amplifiber Testing Instrument Optic lab use |
Note:
$100 is a deposit, not the final price of the product. If you are interested in the product, please contact us for the price.
Specifications
| Parameter | Value | |||
| Connector Type | FC/UPC, SC/UPC,LC/UPC, FC/APC, SC/APC, | |||
| Wavelength (nm) | 1310,1480, 1550 | 980, 1064, | 850 | |
| Insertion Loss (dB) | ≤0.3 | ≤0.5 | ≤0.8 | |
|
Return loss (dB) |
UPC Type | ≥50 | ||
| APC type | ≥60 | |||
| Extinction Ratio 23℃ (dB) | ≥23 | ≥23 | ≥22 | |
| Fiber Type | PM1310,PM1550 | PM980 | PM850 | |
| Key Orientation | Slow Axis | |||
| Axis Alignment (deg) | ±3 | |||
| Operating temperature (℃) | -5~+70 | |||
| Storage temperature (℃) | -40 ~ +80 | |||
Ordering Information
| PMJP | Wavelength | 000 | Pigtail Type | Fiber Length | Connector1 | Connector2 |
| 0850=850nm 0980=980nm 1064=1064nm 1310=1310nm 1480=1480nm 1550=1550nm 1570=1570nm |
1=250um bare fiber 2=900um loose tube 3=3mm loose tube 4=2mm loose tube |
H=0.5m 8=0.8m 1=1.0m 5=1.5m 2=2.0m 3=3.0m 4=4.0m A=2.5m B=5.0m |
0=None 1=FC/UPC 2=FC/APC 3=LC/UPC 4=LC/APC 5=SC/APC 6=SC/UPC |
0=None 1=FC/UPC 2=FC/APC 3=LC/UPC 4=LC/APC 5=SC/APC 6=SC/UPC |
