Polarization Maintaining Mode Field Adapter PMMFA with PM Fiber

The mode field adapter is specially designed for fiber amplifiers and fiber lasers. When it connects two fibers with different mode field diameters (MFD) and numerical apertures (NA), it can maximize the passage of the fundamental mode signal at the splice point. Rate. We can provide MFA with different wavelengths/different optical fibers/different powers/different packaging forms to meet the needs of different application scenarios.

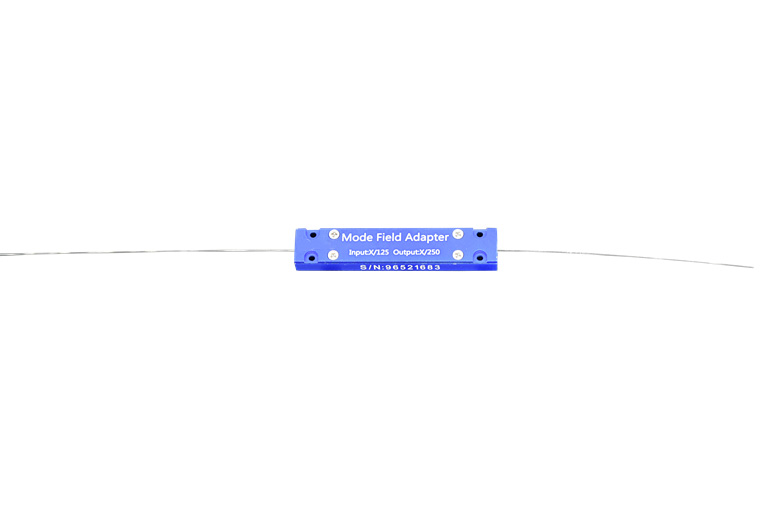

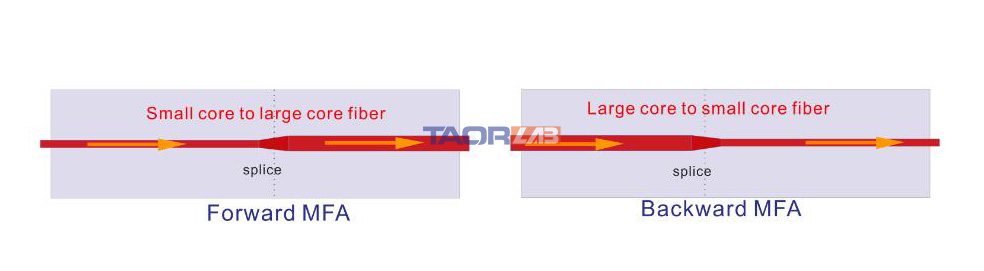

Taorlab’s MFA, along the direction of light transmission, the direction from small mode field diameter fiber to large mode field diameter fiber is forward, and the direction from large mode field diameter fiber to small mode field diameter fiber is reverse.

TaorLab Mode field adapter

Note:
$100 is a deposit, not the final price of the product. If you are interested in the product, please contact us for the price.

Product specifications

1.0um performance parameter index@forward transmission

Working wavelength Input fiber Output fiber Insertion loss (dB)
Max withstand power
1020-1080
SM980-PS-U250(PM980)
or Nufern PM980-XP
 10/125 PM DC ≤0.5 30W
1020-1080 15/130 PM DC ≤0.5 30W
1020-1080 20/125 PM DC ≤0.5 30W
1020-1080 25/250 PM DC ≤0.5 100W
1020-1080 20/400 PM DC ≤0.5 100W
1020-1080
10/125 PM DC or
Nufern PM1060L
 15/130 PM DC ≤0.5 30W
1020-1080 20/125 PM DC ≤0.5 30W
1020-1080 25/250 PM DC ≤0.5 100W
1020-1080 30/250 PM DC ≤0.5 100W
1020-1080 20/400 PM DC ≤0.5 100W



1.5um performance parameter index@forward transmission

Working wavelength Input fiber Output fiber Insertion loss (dB)
Max withstand power
1530-1570 PM1550 PM-GDF-1550 ≤0.5 30W
1530-1570 PM-GDF-1550 PM12/130um,NA0.20/0.46 ≤0.5 30W
1530-1570 PM 12/130um,NA0.20/0.46 PM25/300um,NA0.09/0.46 ≤0.5 30W



2.0um performance parameter index@forward transmission

Working wavelength Input fiber Output fiber Insertion loss (dB)
Max withstand power
1950-2050 PM1950 PM10/130um,NA0.15/0.46 ≤0.5 30W
1950-2050 PM10/130um,NA0.15/0.46 PM25/250um,NA0.09/0.46 ≤0.5 100W
1950-2050 PM1950 PM25/250um,NA0.09/0.46 ≤0.5 30W



1.0um performance parameter index@backward transmission

Working wavelength Input fiber Output fiber Insertion loss (dB)
Max withstand power
1020-1080 10/125 PM DC
SM980-PS-U250(PM980)
or Nufern PM980-XP
 ≤0.5 30W
1020-1080 15/130 PM DC ≤0.5 30W
1020-1080 20/125 PM DC ≤0.5 30W
1020-1080 25/250 PM DC ≤0.5 100W
1020-1080 20/400 PM DC ≤0.5 100W
1020-1080 15/130 PM DC
10/125 PM DC or
Nufern PM1060L
 ≤0.5 30W
1020-1080 20/125 PM DC ≤0.5 30W
1020-1080 25/250 PM DC ≤0.5 100W
1020-1080 30/250 PM DC ≤0.5 100W
1020-1080 20/400 PM DC ≤0.5 100W



1.5um performance parameter index@backward transmission

Working wavelength Input fiber Output fiber Insertion loss (dB)
Max withstand power
1530-1570 PM-GDF-1550 PM1550 ≤0.5 30W
1530-1570 PM12/130um,NA0.20/0.46 PM-GDF-1550 ≤0.5 30W
1530-1570 PM25/300um,NA0.09/0.46 PM12/130um,NA0.20/0.46 ≤0.5 30W



2um performance parameter index@backward transmission

Working wavelength Input fiber Output fiber Insertion loss (dB)
Max withstand power
1950-2050 PM10/130um,NA0.15/0.46 PM1950 ≤0.5 20W
1950-2050 PM25/250um,NA0.09/0.46 PM10/130um,NA0.15/0.46 ≤0.5 50W
1950-2050 PM25/250um,NA0.09/0.46 PM1950 ≤0.5 20W

*The temperature measurement environment is 25℃;
*The above data does not include headers. We can also provide MFA with other different optical fiber matching. Please contact us if you have other different needs.

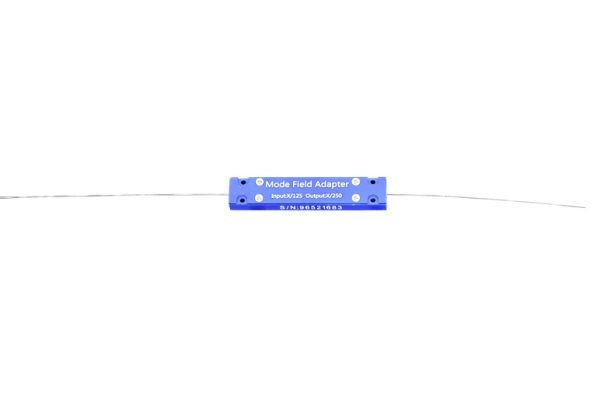

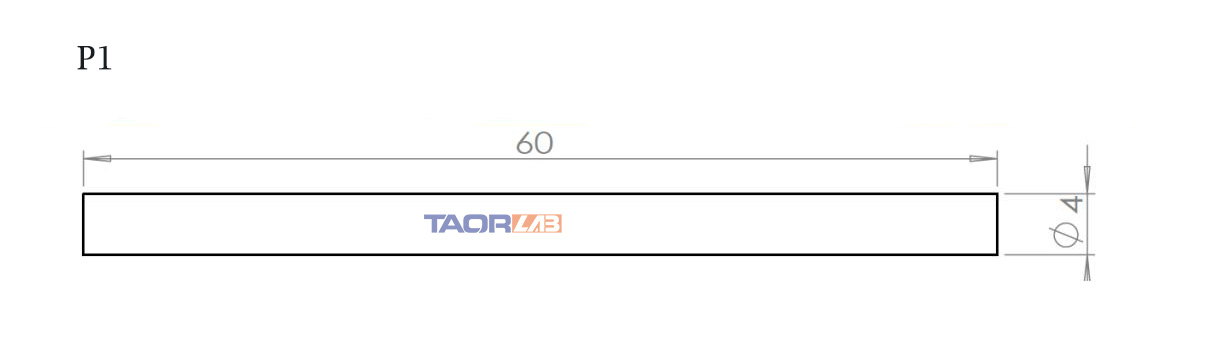

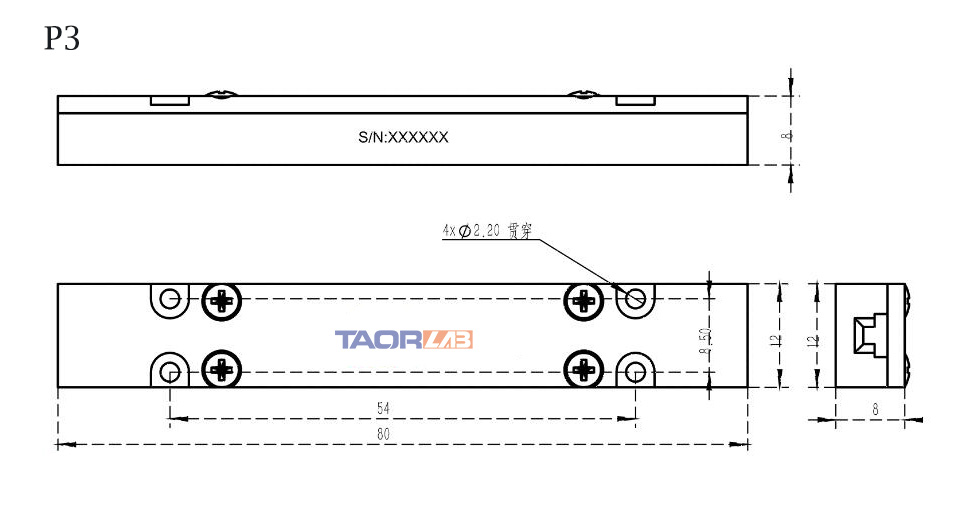

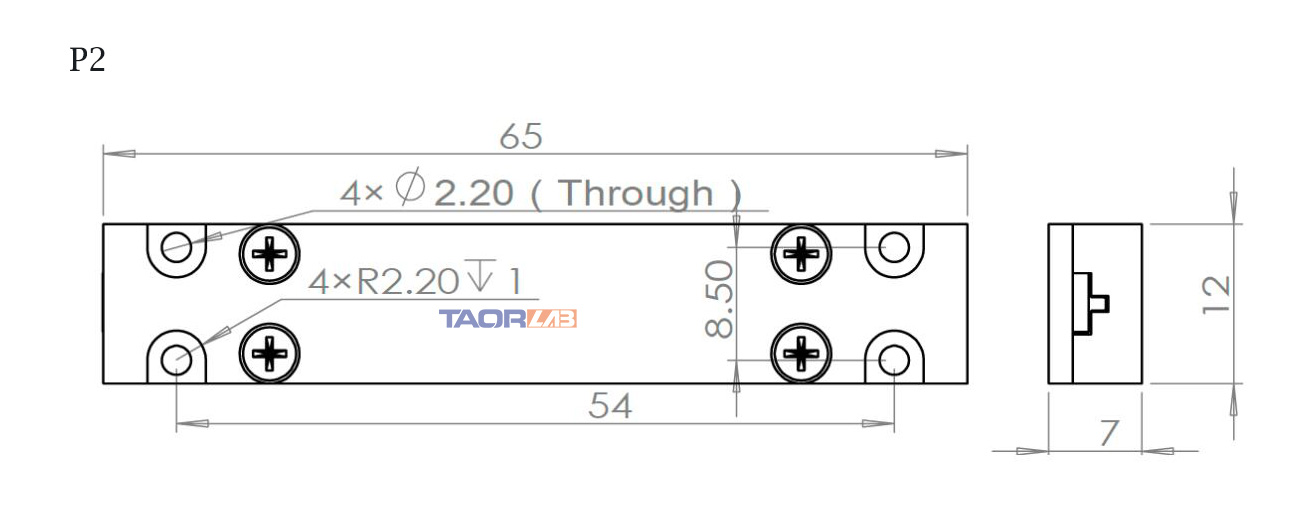

Package Dimensions

Package type P1 P2 P3
Size (mm) Ф4.0×60 65x12x7 80x12x8




TaorLab Mode field adapter


TaorLab Mode field adapter


TaorLab Mode field adapter

Model Information

TLPMMFA
 ① ② ③ ④ ⑤ ⑥ ⑦
Working wavelength Signal direction Withstand power Input fiber Output fiber Package type Fiber length
1064=1064nm
1550=1550nm
2000=2000nm
S=other		 F=forward
B=backwards		 10=20W
30=30W
S=other
P9=PM980
P15=PM1550
P19=PM1950
10/125PMDC=PM10/125DC
10/130PMDC=PM10/130DC
1550PMDC=PM-GDF-1550
S=other
P9=PM980
P15=PM1550
P19=PM1950
10/125PMDC=PM10/125DC
10/130PMDC=PM10/130DC
1550PMDC=PM-GDF-1550
S=other
 1=P1
2=P2
3=P3		 08=0.8m
10=1.0m
20=2.0m
S=other

*Model Reference: TLPMMFA-1064-F-10-P1-10/125PMDC-2-10
Polarization-maintaining mode field adapter, center wavelength 1064nm, signal light forward transmission, power tolerance 10W, input fiber PM980, output fiber PLMA-GDF-10/125-M, 65x12x7 shell package, fiber length 1 meter, bare fiber.
