Free Space Acousto-Optic Modulators

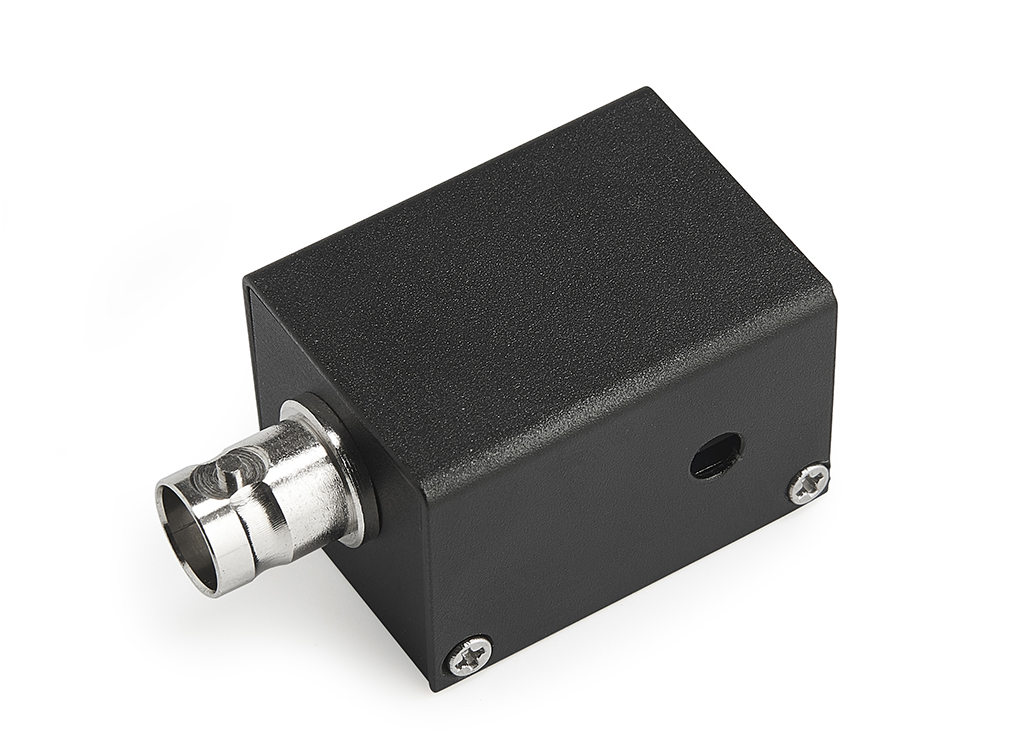

Raman Neiss Acousto-Optic Modulator 532nm~633nm AOM Customized
Product ID: 5819
This is a customized product. The wavelength, center frequency and clear aperture of the acousto-optic modulator can be customized.
$100
Raman Neiss Acousto-Optic Modulator 532nm~633nm AOM Customized
[Features]
Compact structure
Stable performance
[Applications]
Laser teaching equipment
Note:
(1) This is the deposit, not the final product price.
For the actual product price, please contact us, different specifications have different prices.
(2) Lead Time: 3~4 weeks
[Specifications]
| Parameter | Unit | Min | Max | Typ. | Remarks |
|---|---|---|---|---|---|
| Material | TeO² | ||||
| Wavelength | nm | 532 | 633 | Customized | |
| Ultrasonic Velocity | m/s | 4200 | |||
| Center Frequency | MHz | 15 | 75 | 45 | Customized |
| Clear Aperture | mm | 1 | 3 | 1 | Customized |
| Diffraction series | ±5 | ||||
| Transmittance | 99% | ||||
| Input Resistance | Ω | 50 | |||
| Device Interface | SMA / BNC | ||||
| Operating Temperature | ℃ | -10~+60 | |||
| Storage Temperature | ℃ | -30~+70 |
