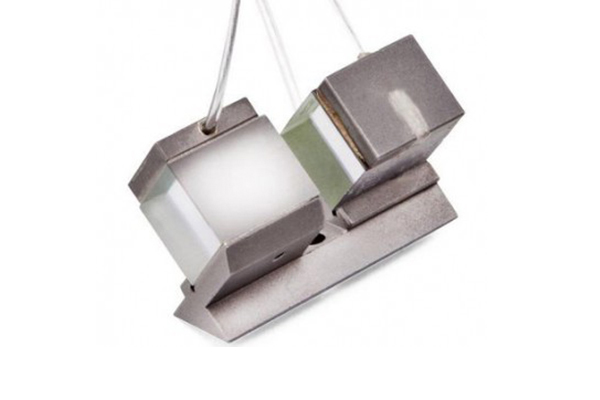

RTP Pockels Cells
RTP Pockels Cells – Electro-optic Product- Customized Products
Product ID: 6774
$100
RTP Pockels Cells – Electro-optic Product- Customized Products
RTP (RbTiOPO4) Pockels Cells, also known as rubidium titanium phosphate oxide pockels cells. They are a comprehensive and excellent pockels cells devices.
They Are Widely Used in Laser Technology Fields Such As:
Electro-optical modulation
Pulse shaping
Laser internal cavity Q
RTP Pockels cells have higher electro-optical performance, possesses a large electro-optical coefficient, high threshold of light injury resistance, excellent chemical stability, high resistivity.
Note:
$100 is a deposit, not the final price of the product. Please contact us for price if needed.
Compared with other electro-optical materials, RTP (rubidium titanium oxide phosphate) pockels cells have many advantages:
No moisture absorption
Low switching voltage
Good extinction ratio
No piezoelectric and thermoelectric effects
They can be used in the field of RTP Q-switch or RTP pulse selector
Features of RTP Pockels Cells:
High resistivity
High extinction ratio
Low half-wave voltage
High resistance to photodamage threshold
High switching frequency
High threshold for crystal damage
Very low ringing effect
No deliquescence, low dielectric constant
Pockels Cell Specifications
| Working Range | 500-3000nm |
| Transmittance | >98.5% |
| Extinction Ratio | 30dB |
| Acceptance Angle | <4° |
| Standard AR Coating | R<0.1% @1064nm |
| Damage Threshold | 600MW/cm2 10ns 10Hz @1064nm |
Pockels Cell Parameters
| 1064nm Transmittance | >98.5% | |
| Clear Aperture | 3,4,5,6,7,8,9,10,11,12mm | |
| 1064nm Half-wave Voltage | 1000V(3×3×10+10) | |
| Extinction Ratio | >23dB | |
| Acceptance Angle | >1° | |
| Damage Threshold | >600MW/cm2 10ns @1064nm | |
| Stable Performance Temperature Range | -50℃～+70℃ | |
| 1064nm Static Half-wave Voltage | 4x4x20mm: 1600V | |
| 6x6x20mm: 2400V | ||
| 9x9x20mm: 3600V | ||
| Optical Dielectric Constant | r33=38.5pm/V | Y cut |
| r33=35pm/V | X cut | |
| r23=12.5pm/V | ||
| r13=10.6pm/V | ||

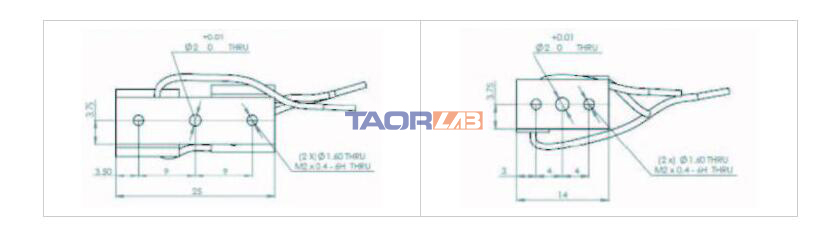

Structure Diagram
.jpg)
