Thin Film Coupler
Single Mode Filter Coupler Optical Thin-film Coupler with SM Fiber
Product ID: 6931
$100
Single Mode Filter Coupler Optical Thin-film Coupler with SM Fiber
| Features |  |
| Low Insertion Loss & High Isolation High Stability and Reliability |
|
| Application | |
| Fiber Amplifier Fiber Laser Fiber Instrument |
Note:
$100 is a deposit, not the final price of the product. If you are interested in the product, please contact us for the price.
Specifications
| Parameter | 1×2 | 2×2 | ||
| Center Wavelength (nm) | 1310 , 1480, 1550 | 1030, 1064 | 1310, 1480,1550 | 1030, 1064 |
| Operating Wavelength Range (nm) | ±40 | |||
| Excess Loss (dB) | ≤0.8 | ≤1.0 | ≤1.1 | ≤1.3 |
| PDL (dB) | ≤0.15 | |||
| Uniformity (only for 50/50) (dB) | ≤0.6 | ≤0.8 | ||
| Tap Ratio (dB) | 1±0.2%, 5±1.0%, 10%, and 50% | |||
| Return Loss (dB) | ≥50 | |||
| Power Handling (mW) | ≤300 | |||
| Operating Temperature (°C) | 0 ~ +70 | |||
| Storage Temperature(°C) | -40 ~ +85 | |||
|
Dimensions (mm) |
φ5.5 × L35(P1) (only for bare fiber or 900um loose tube) | |||
| L90*W20*H9.5（ABS）(P2) (only for 3mm or 2mm cable) | ||||
*Above specifications are for device without connector.
*For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower.

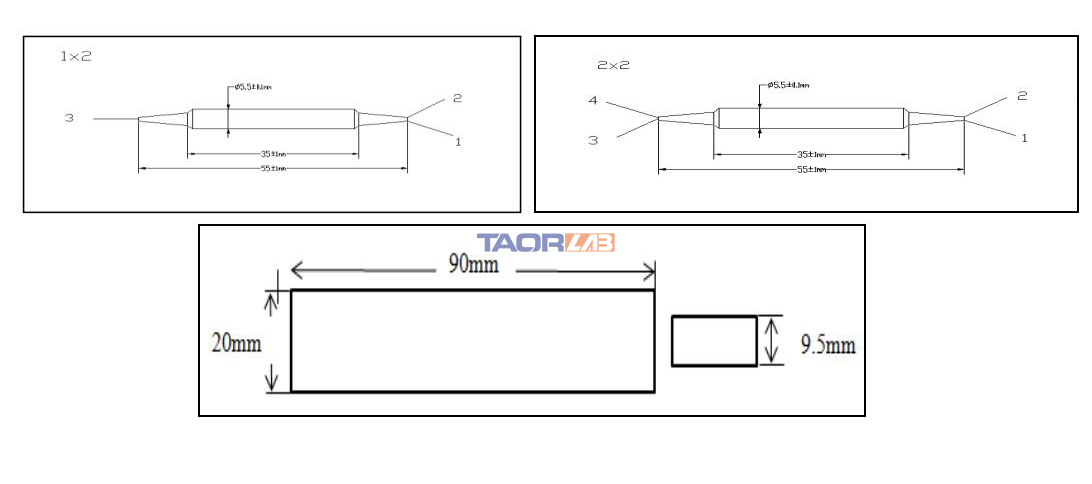

Package Dimensions
Ordering Information
| SMFC | Wavelength | Type | Coupling Ratio | Fiber Type | Package Type | Pigtail Type | Length | Connector |
| SMFC | 1030=1030nm 1064=1064nm 1310=1310nm 1480=1480nm 1550=1550nm 1580=1580nm |
1=1×2 2=2 x2 |
1=1/99 2=2/98 3=3/97 4=4/96 5=5/95 A=10/90 B=20/80 C=30/70 D=40/60 E=50/50 |
1=SMF-28e 2=HI1060 |
1=Ф5.5*L35mm 2=90*20*9.5mm |
1=250um bare fiber 2=900um loose tube 3=3mm loose tube 4=2mm loose tube |
H=0.5m 8=0.8m 1=1.0m 5=1.5m 2=2.0m 3=3.0m 4=4.0m A=2.5m B=5.0m |
0=None 1=FC/UPC 2=FC/APC 3=LC/UPC 4=LC/APC 5=SC/APC 6=SC/UPC |
