UV LED Light Curing Equipment Dot Line Light Source Curing

UV LED Light Curing Equipment Dot Line Light Source Curing

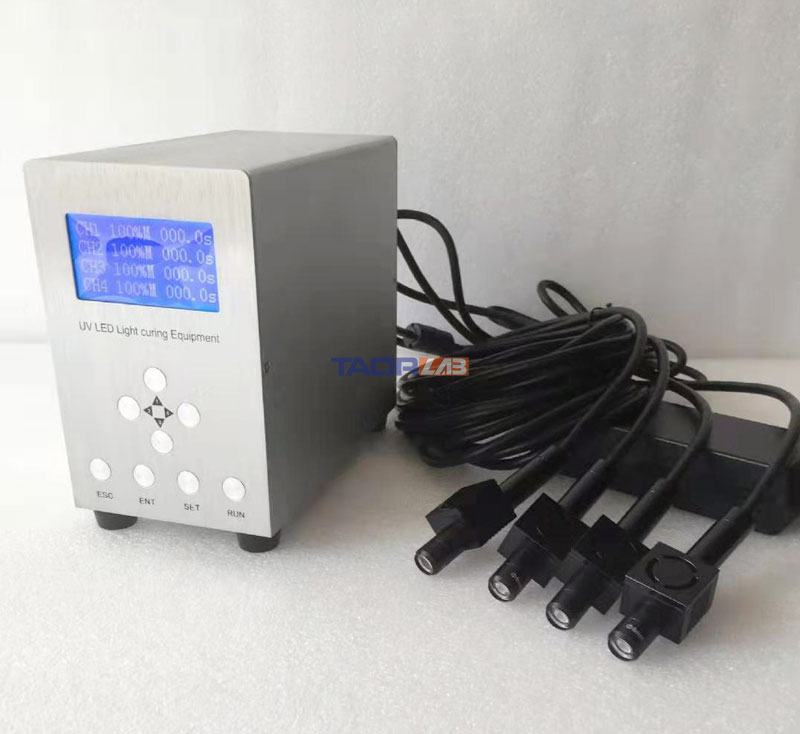

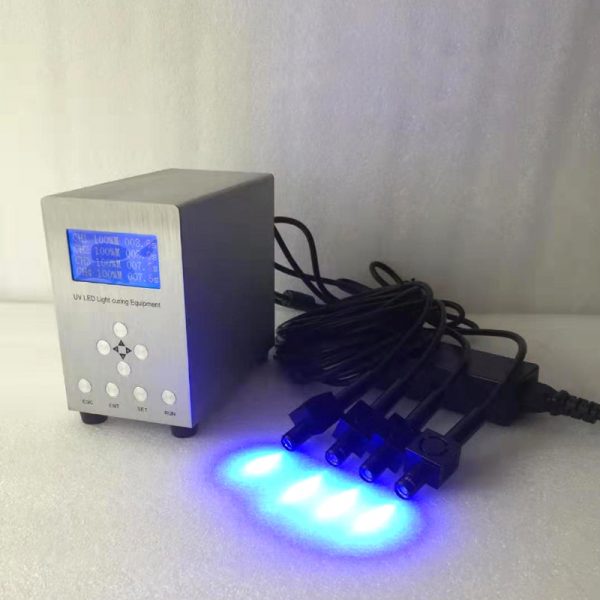

Product Name: UV LED Curing Equipment

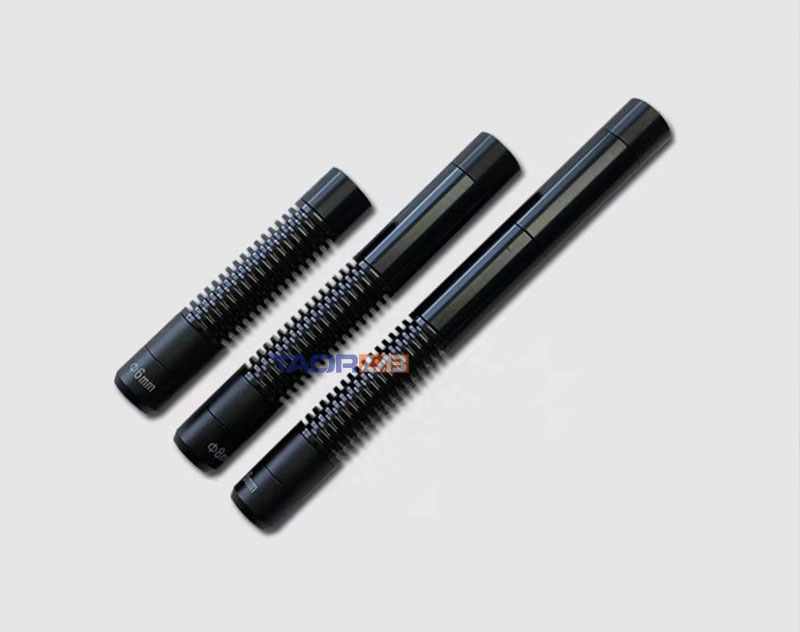

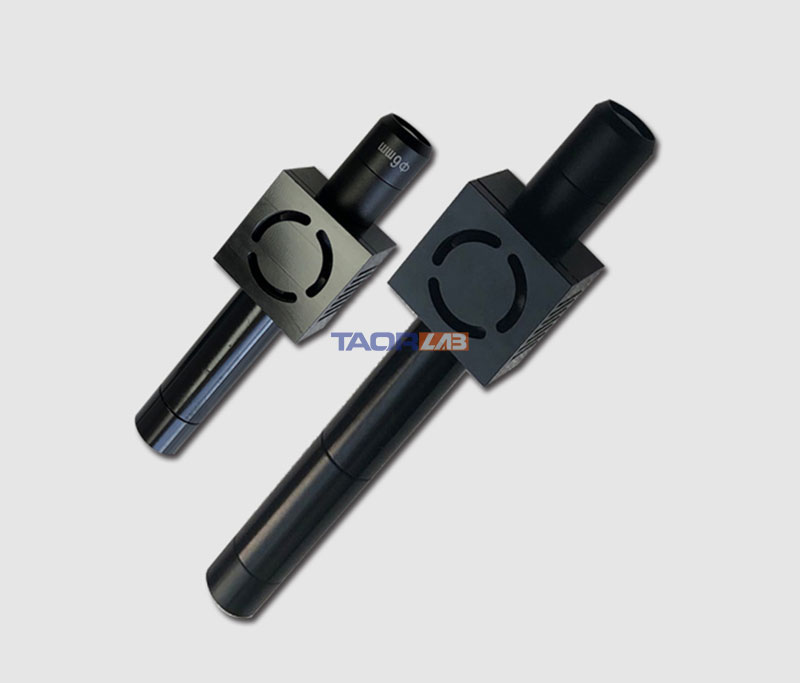

Structure: 1*Host + Irradiation head
Number of irradiation heads 1~4 optional.
Power: >300W
Voltage: 90V~260V

Note:
Please read the manual carefully before use, especially the operation precautions;
UV radiation can cause eye and skin damage, please make sure to use it safely.

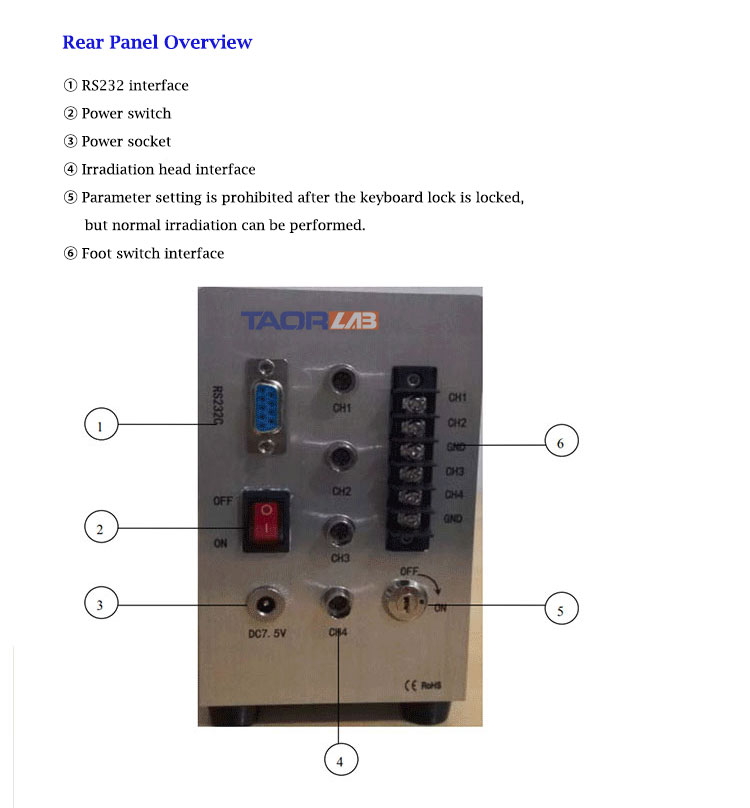

Rear Panel Overview:
① RS232 interface
② Power switch
③ Power socket
④ Irradiation head interface
⑤ Parameter setting is prohibited after the keyboard lock is locked, but normal irradiation can be performed.
⑥ Foot switch interface

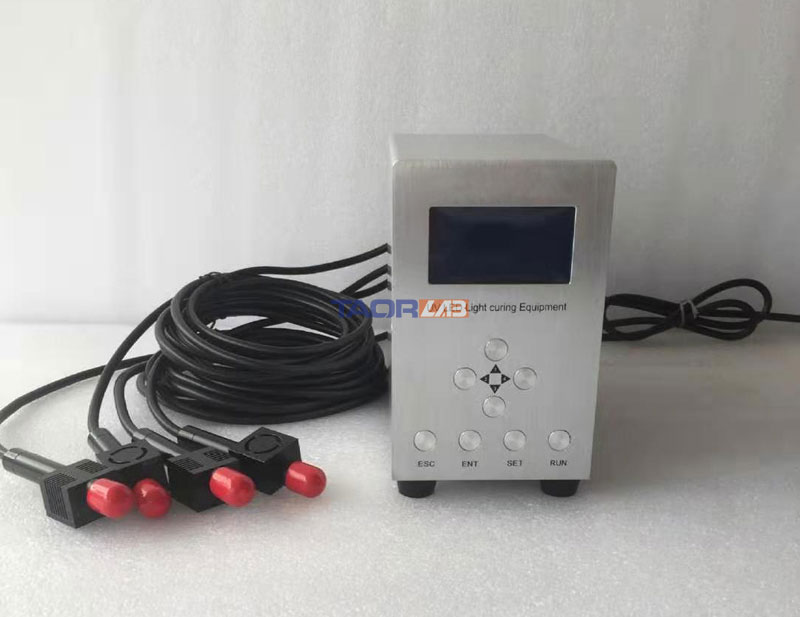

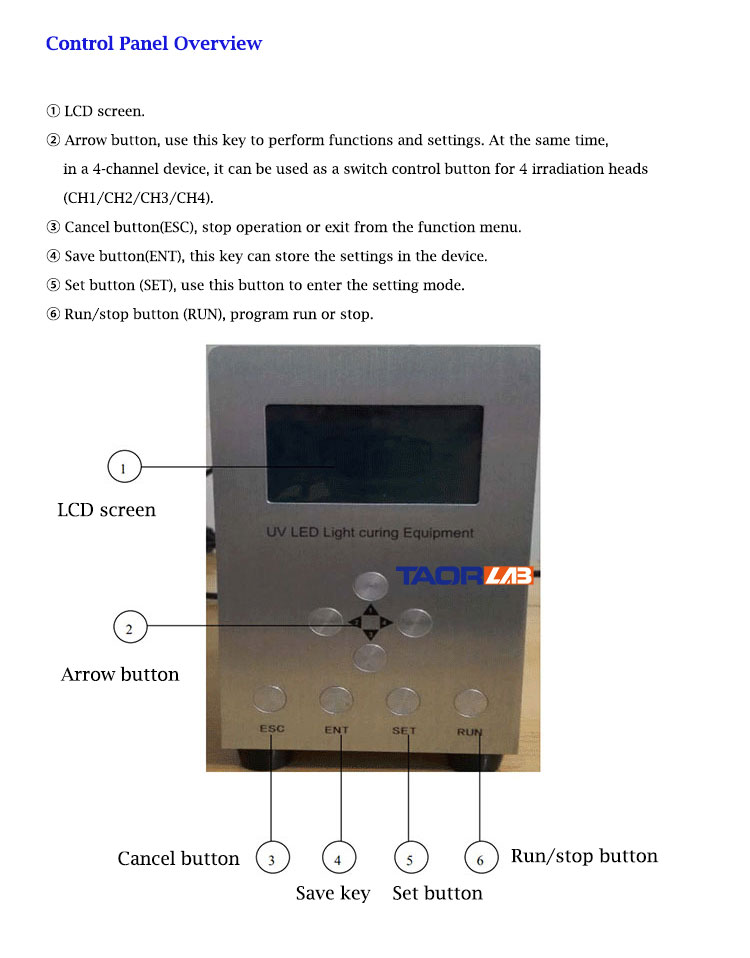

Control Panel Overview:
① LCD screen.
② Arrow button, use this key to perform functions and settings. At the same time, in a 4-channel device, it can be used as a switch control button for 4 irradiation heads (CH1/CH2/CH3/CH4).
③ Cancel button(ESC), stop operation or exit from the function menu.
④ Save button(ENT), this key can store the settings in the device.
⑤ Set button (SET), use this button to enter the setting mode.
⑥ Run/stop button (RUN), program run or stop.
