V:YAG
V:YAG(V-doped yttrium aluminium garnet) – Passively Q-switched Crystal – Customized Products
Product ID: 6649
$100
V:YAG(V-doped yttrium aluminium garnet) – Passively Q-switched Crystal – Customized Products

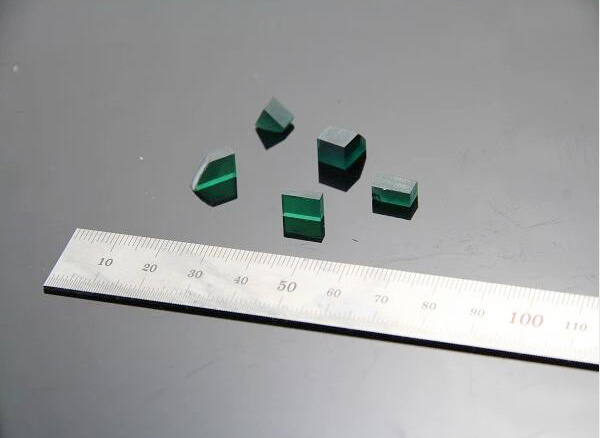

V:YAG crystal, also known as V-doped yttrium aluminium garnet crystal, with the chemical formula of V3+:Y3Al5O12. It is a new laser saturable absorber and passive Q-switch crystal product with good comprehensiveness.
It is widely used in laser plotters, rangefinders, laser cutting machines, and other fields. In the passive Q-switched solid-state laser, the laser has the advantages of good stability, long life, miniaturization, simplicity, and practicality.
Element V has four chemical valences: +2, +3, +4 and +5. V3+ ions with +3 valence are commonly used as Q-switches and saturable absorption ions.
They are doped into YAG matrix crystals to achieve passive Q-switches and laser mode-locking. V:YAG crystal is a new material of laser saturable absorber and passive Q-switch, and its wavelength range is 1.06μm – 1.44μm.
Particularly applicable to 1.3 μm Nd laser. It is an excellent saturable absorber at 1300 nm.
Note:
$100 is a deposit, not the final price of the product. Please contact us for price if needed.
Features of V:YAG Crystal:
The service life is long
Excited state absorption
High damage threshold
Recovery time is short
High degree of saturation for 1.3μm
Attributes
| Attribute | Numerical |
| Chemical Formula | V3+:Y3Al5O12 |
| Crystal Structure | Cubic– la3dn> |
| Orientation | <100> <+/-0.5° |
| Transmittance | 30%-97% |
| Optical Density | 0.1-0.8 |
| Atomic Transition Structure | Two-stage System |
| Recovery Time | 5~22 ×10-22 s |
| Concentrations | (0.05~0.35) wt% |
| Ground State Absorption Cross Section | 7.2 x 10-18 cm2 |
| Excited State Absorption Cross Section | 7.4 x 10-19 cm2 |
| Transmit Bandwidth | 1000-1450 nm |
| Central Absorption Wavelength | 1300 nm |
| Coating | Standard coating is AR with R |
| < 0.2%(@1340 nm) | |
| Absorption Coefficient | 1.0cm-1 – 7.0cm-1 |
| Damage Threshold | >500MW/cm2 |
Polishing
| Attribute | Numerical |
| Orientation Tolerance | < 0.5° |
| Thickness/Diameter Tolerance | ±0.05 mm |
| Surface Roughness | <λ/8@632 nm |
| Wavefront Distortion | <λ/4@632 nm |
| Surface Finish | 5-Oct |
| Parallelism | 30〞 |
| Perpendicularity | 15ˊ |
| Clear Aperture | >90% |
| Chamfer | <0.2×45° |
| HR Coating | <= 0.2% (@ 1340nm) |

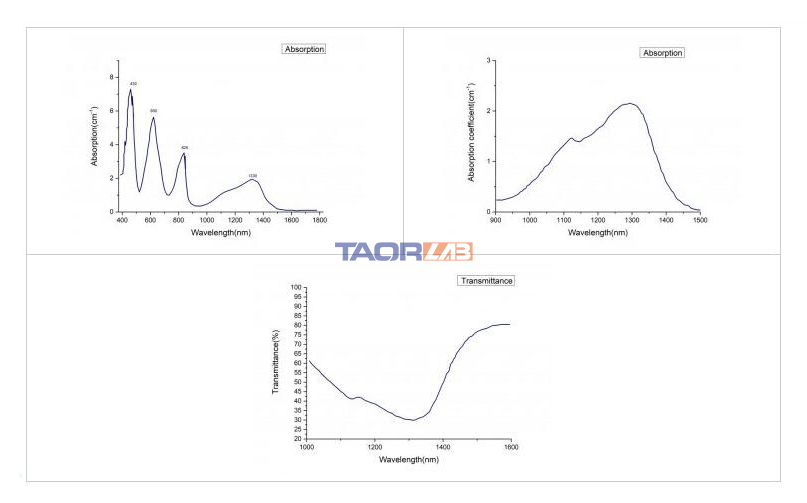

Spectrum
